[2-Side Slit Finishing Adj.]
Overview
Adjust the slitting speed of the top side on the saddle stitcher.
This function reduces skewing or napping on the slit part.
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted | ||
Required items | - | ||
Setting items | [61g/m2 or Less] | Adjusts the slitting speed when the paper weight is 61 g/m2 or less. | |
[62g/m2 or More] | Adjusts the slitting speed when the paper weight is 61 g/m2 or more. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slit Finishing Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slit Finishing Adj.] | |||
Procedure
1
Select [61g/m2 or Less] or [62g/m2 or More].
2
Press [Print Mode].
3
Load A3 w or 11 e 17 w paper into any paper tray, and select that paper tray.
4
Press Start on the Control panel.
A sample is output.
5
Check the slit part for skewing or napping.
6
If any adjustments are required, press [Exit PrintMode] to return to the setting screen.
7

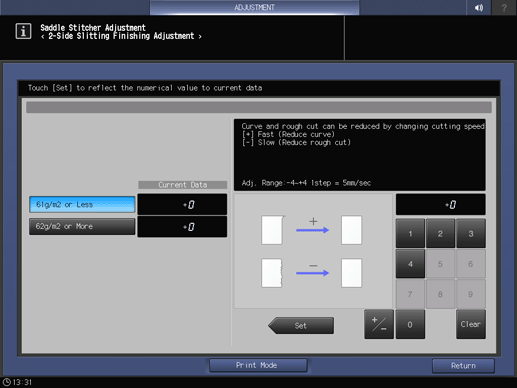

Use the on-screen keypad to enter the numeric value.
Use [+]/[-] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-4~+4 1step = 5mm/sec]
To reduce napping, slow down the slitting speed. To reduce skewing, increase the slitting speed.
8
Repeat step 2 to step 7 until the desired result is obtained.
