User's Guide

> Adjustment > [Image Diagnosis] > [Detailed Diagnosis] > Screen

Screen

Overview
Screen Access
Screen

Overview

Perform [Detailed Diagnosis].

By selecting any item, you can perform a very effective diagnosis.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [Quality Adjustment] - [Image Diagnosis] - [Detailed Diagnosis]

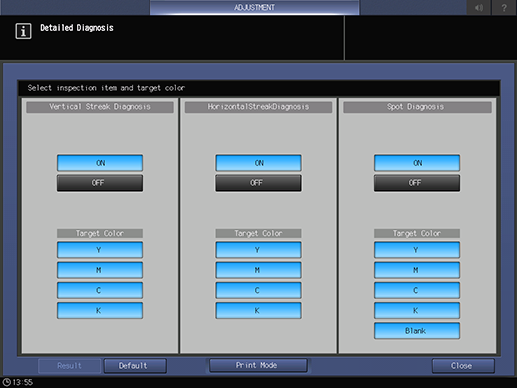

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a diagnosis chart.

[Close]

Moves to the previous screen.

[Result]

Displays the [Detailed Diagnosis] diagnosis result. For details, refer to [Result].

[Default]

Selects [ON] and every [Target Color] for each diagnosis item.
