[Adjustment Interval]
Overview
Add the timing of periodical adjustments.
This function also performs periodical adjustment when the number of printed sheets reaches the set value, in addition to the periodical adjustment that is performed automatically.
NOTICE
- The following settings are required to use this function.
- Set [Use Color Density Control] to [ON].
- Set [Periodical Adj. Execution] to [ON].
Tips
The page counting method is as follows.
- 2-sided printing: The front and back sides are counted as 1 page each.
- Combined printing (2 in 1, etc.): The combined result is counted as 1 page.
Reference
- For details about [Use Color Density Control], refer to [Use Color Density Control].
- For details about [Periodical Adj. Execution], refer to [Periodical Adj. Execution].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Relay Unit RU-518m or Intelligent Quality Optimizer IQ-501 | ||
Required items | - | ||
Setting items | [ON] | Adds the timing of periodical adjustments. To set the adjustment interval, press [Change]. | |
-[OFF] | Performs only the automatic periodical adjustment. | ||
Remarks | -: Default We recommend that you to set the number of pages based on the frequently used lot unit. | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Quality Adjustment] - [Color Density Control] - [Basic Setting] | ||
Procedure
1
Select [ON].
2
Press [Change].

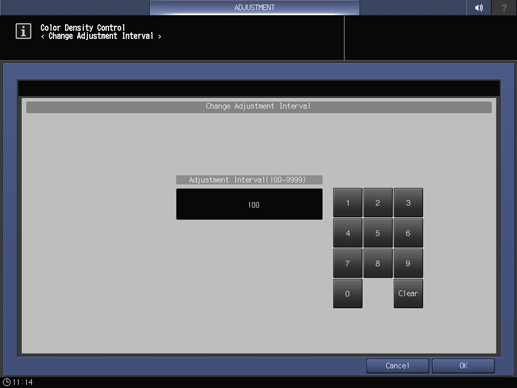

The setting screen is displayed.
Default: 1000 sheets
3
Use the on-screen keypad to enter the number of printed sheets subject to periodical adjustment.
For example, if the number of printed sheets is set to 2,000, periodical adjustment is performed when the number of printed sheets reaches 2,000.
Available range: 100 to 9999 sheets
4
Press [OK].
