User's Guide

> Adjustment > [Staple Finisher(Fold) Adj.] > [Tri-Fold Adjustment] > Screen

Screen

Overview
Screen Access
Screen

Overview

Adjust the tri-fold function for Saddle Stitcher SD-510 mounted on the finisher.

Arrange the finishing of printouts by adjusting the tri-fold position and the push-in amount of the alignment plate.

Screen Access

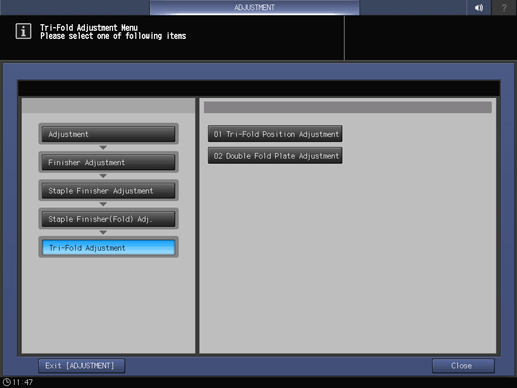

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment]

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Return]

Moves to the previous screen.
