> Adjustment > [Image Diagnosis] > [Simple Diagnosis] > Screen

Screen

Overview
Screen Access
Screen

Overview

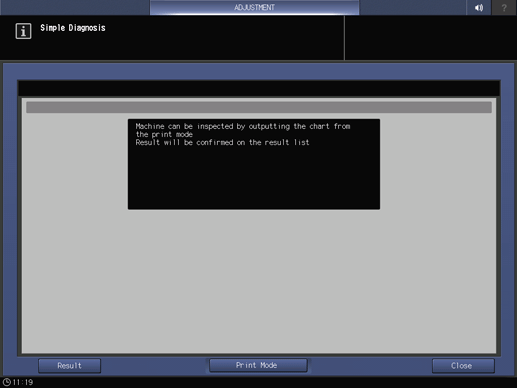

Perform [Simple Diagnosis].

When a chart is output, diagnosis starts, and the diagnosis result can be checked.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [Quality Adjustment] - [Image Diagnosis] - [Simple Diagnosis]
