> Adjustment > [Staple Finisher(Punch) Adj.] > Screen

Screen

Overview
Screen Access
Screen

Overview

Make various adjustments for Punch Unit PK-525 mounted on the finisher.

Arrange the finishing of printouts by adjusting the rotation amount of the registration roller or the punch hole position.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.]

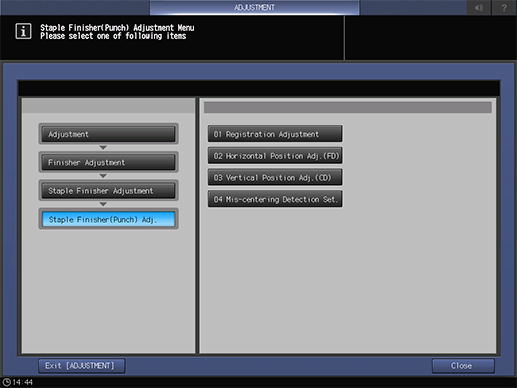

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Close]

Moves to the previous screen.

[Return]

Moves to the previous screen.

[Exit [ADJUSTMENT]]

Closes the [ADJUSTMENT] screen.
