[Max. Density Auto Adj.]
Overview
Automatically adjust the maximum density for yellow, magenta, cyan, and black individually.
This function measures differences from the target density values set by the customer engineer (CE), and adjusts the measurement value.
Tips
- When Intelligent Quality Optimizer IQ-501 is mounted, [Max. Density Auto Adj.] is displayed.
- When Intelligent Quality Optimizer IQ-501 is not mounted, [Max. Density Auto Adj. (RU)] is displayed.
Reference
- For details about the procedure of [Max. Density Auto Adj.], refer to [Adjustment / Maintenance].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Relay Unit RU-518m or Intelligent Quality Optimizer IQ-501 | ||
Required items | - | ||
Setting items | [Current Data] | Displays the automatic adjustment result of the maximum density for yellow, magenta, cyan, and black individually. These values are applied to [Maximum Density Adjustment]. | |
[Measurement History] | Displays the maximum density measurement history. | ||
[Print Mode] | Outputs a chart for measurement. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Quality Adjustment] - [Max. Density Auto Adj.] | ||
Control panel - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Process Adjustment] - [Max. Density Auto Adj.] | |||
Procedure
1
Press [Measurement History].
The [Maximum Density Measurement History] screen is displayed.
2
Press [+] or [,].
The [Maximum Density Measurement History] screen changes.
Measurement history display: Max. 30 items
3
Press [Switch Display].
The display items change.
Display 1: [Measurement Date] and measurement value for each color

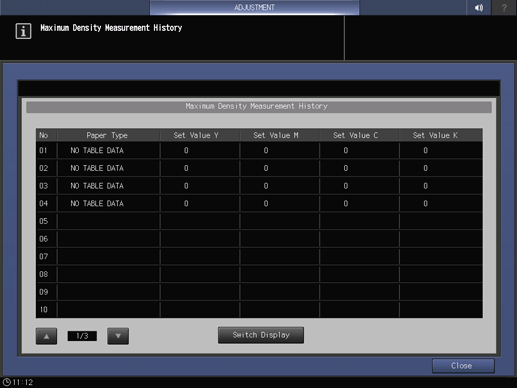

Display 2: [Paper Type] and measurement value for each color
