[Deviation Check]
Overview
Configure the setting to check for misalignment when performing [Periodical Both Sides Adj.].
This function detects printing misalignment and reduces instances of misprinting by checking for misalignment.
NOTICE
- The following setting is required to use this function.
- Set [Period. Both Sides Auto Adj.] to [ON].
Reference
- For details about [Period. Both Sides Auto Adj.], refer to [Period. Both Sides Auto Adj.].
Specifications
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Intelligent Quality Optimizer IQ-501 | ||
Required items | - | ||
Setting items | [ON] | Checks for misalignment. The default can be set to detect a misalignment. | |
-[OFF] | Does not check for misalignment. | ||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Quality Adjustment] - [Periodical Both Sides Adj.] | ||
Procedure
Set the default to detect a misalignment.
1
Press [ON].

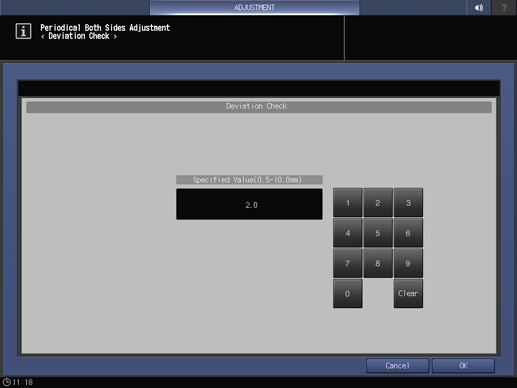

The setting screen is displayed.
2
Use the on-screen keypad to enter the standard value (misalignment amount) used to judge a misalignment.
For example, if the standard value is set to 3.0 mm, it is judged that a misalignment has occurred when the misalignment amount exceeds 3.0 mm.
Adjustment interval: 0.5 mm to 10.0 mm
Default: 2.0 mm
3
Press [OK].
