User's Guide

> Adjustment > [Multi Folder(Punch) Adj.] > [Punch Vertical Position Adj.] > Screen

Screen

Overview
Screen Access

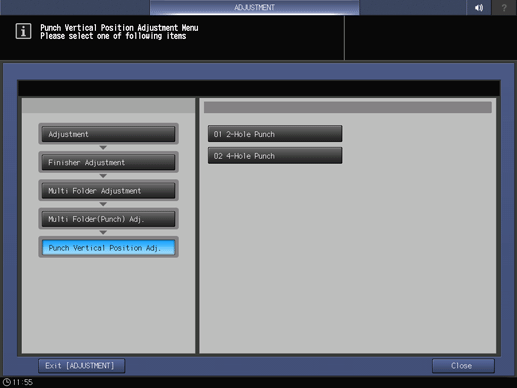

Screen

Overview

Adjust the vertical punch hole position of FoldingUnit FD-503.

Arrange the finishing of printouts by adjusting the misalignment of the punch hole position.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Multi Folder Adjustment] - [Multi Folder(Punch) Adj.] - [Punch Vertical Position Adj.]

Screen

Common keys

Key name

Description

[Print Mode]

Outputs a sample for adjustment.

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Close]

Moves to the previous screen.

[Return]

Moves to the previous screen.

[Exit [ADJUSTMENT]]

Closes the [ADJUSTMENT] screen.
