[AutoMeasure]
Overview
Read the output chart using Intelligent Quality Optimizer IQ-501, and automatically perform Both Sides Adjustment. Up to 20 charts can be automatically read at one time. As the number of charts is greater, the accuracy of the adjustment value becomes higher.
The result is displayed after adjustment so you can immediately grasp the adjustment result.
Tips
- For fine-adjustment, adjust [Zoom] and [Image Shift].
Specifications
Category | Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Intelligent Quality Optimizer IQ-501 | ||
Required items | - | ||
Setting items | [Vertical] | Displays each adjustment value. Performing automatic measurement updates the numeric values. | |
[Horizontal] | |||
[Up/Down Shift] | |||
[Right/Left Shift] | |||
[Rotate] | |||
[Skew] | |||
[Trapezoid(CD)] | |||
[Trapezoid(FD)] | |||
[Curve] | |||
[Peak of Curve] | |||
[Print Mode] | Outputs a chart for measurement. | ||
Remarks | - | ||
Reference | - | ||

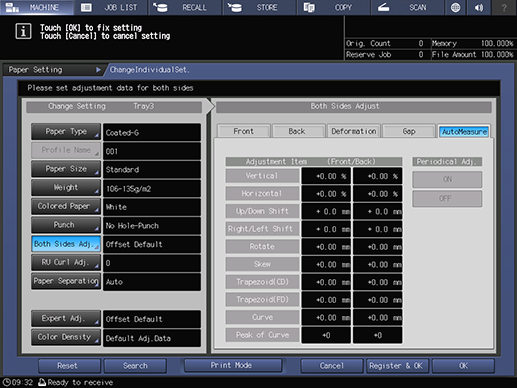

Screen access | Touch panel - [MACHINE] - [Paper Setting] - [Both Sides] - [Change Set] - [Both Sides Adj.] - [AutoMeasure] | ||
Touch panel - [MACHINE] - [Paper Setting] - [New Setting] - [Both Sides Adj.] - [AutoMeasure] | |||
Touch panel - [MACHINE] - [Both Sides] - [AutoMeasure] | |||
Touch panel - [MACHINE] - [Reg./Del.PaperSet.] - [Add/Edit] - [Both Sides Adj.] - [AutoMeasure] | |||
Procedure
1
Press [Print Mode].
2
Enter the number of chart output sheets, and press Start on the Control panel.
A test chart is output, and each adjustment value is updated.
3
Output 1 sheet of a chart, and check the result.
