Overview
Adjust any misalignment of printing positions on the front and back sides that occurs during 2-sided printing.
When you change the paper to load into a paper tray, always perform [Both Sides Adjust].
NOTICE
- The available items or functions vary depending on whether a scanner and HDD are equipped.
- The optional Paper Feeder Unit PF-713 and Upgrade Kit UK-112 are required to use the scanner and HDD in this system.
Screen Access
Touch panel - [MACHINE] - [Both Sides]
Touch panel - [MACHINE] - [Paper Setting] - [Change Set] - [Both Sides Adj.]
Touch panel - [MACHINE] - [Paper Setting] - [New Setting] - [Both Sides Adj.]
Touch panel - [MACHINE] - [Reg./Del.PaperSet.] - [Add/Edit] - [Both Sides Adj.]

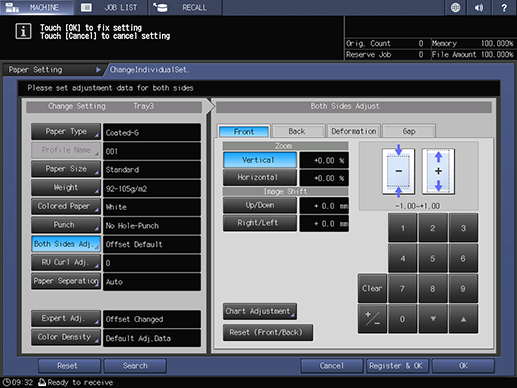

Screen
Screen with Intelligent Quality Optimizer IQ-501 mounted
Screen with Intelligent Quality Optimizer IQ-501 unmounted (scanner equipped)
Screen with Intelligent Quality Optimizer IQ-501 unmounted (scanner unequipped)
The rightmost tab on the Both Sides Adjust screen varies depending on the optional devices mounted on this system.
Intelligent Quality Optimizer IQ-501 | Scanner | Tab display |
|---|---|---|
Provided | Equipped | [AutoMeasure] |
Unequipped | ||
Not provided | Equipped | [Scan Meas.] |
Unequipped | Blank |
Common keys
Key name | Description |
|---|---|
[Cancel] | Moves to the previous screen without saving the settings. |
[Register & OK] | Saves the settings, and newly saves or overwrites the setting. |
[OK] | Saves the settings and moves to the previous screen. |
[Close] | Moves to the previous screen. |
[Reset] | Resets the numeric value you are currently entering. |
[Search] | Search for the registered paper profile. |
