[Paper Size]
Overview
Set the paper size as the paper profile search condition.
Multiple items can be selected.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Standard] | Includes all the standard sizes in search conditions. To narrow down standard sizes, press [Setting], and select the desired condition from the [Paper Profile Search Condition] list. | |
[Custom] | Includes all the custom sizes in search conditions. To narrow down custom sizes, press [Setting], and set the size in [Paper Profile Search Condition]. | ||
[Tab Paper] | Includes all the tab paper sizes in search conditions. To narrow down tab paper sizes, press [Setting], and select the desired condition from the [Paper Profile Search Condition] list. | ||
Remarks | The paper size selected in [Setting] is displayed under [Standard], [Custom], or [Tab Paper]. | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Both Sides] - [Recall] - [SearchCondition] | ||
Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Profile No.] - [SearchCondition] | |||
Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Profile No.] - [SearchCondition] | |||

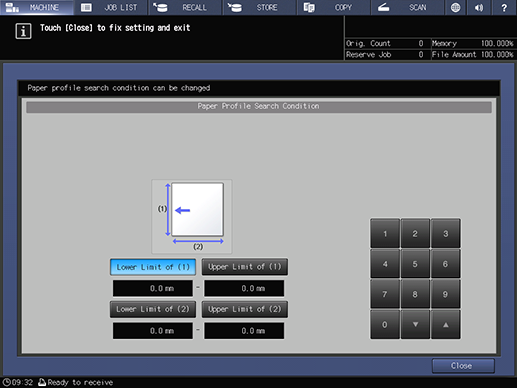

Procedure (Setting the Custom Size Search Range)
1
Press [Setting] on the right of [Custom].
2
Select [Lower Limit of (1)], [Upper Limit of (1)], [Lower Limit of (2)], or [Upper Limit of (2)].
3
Use the on-screen keypad to enter the numeric value.
Range of (1): 95.0 mm to 331.0 mm
Range of (2): 139.0 mm to 487.7 mm
Pressing [,]/[+] increases or decreases the numeric value by 1 mm.
