> User Settings > [Scan Initial Setting] - [Scan Size] > [Size Setting] > [Input Size]

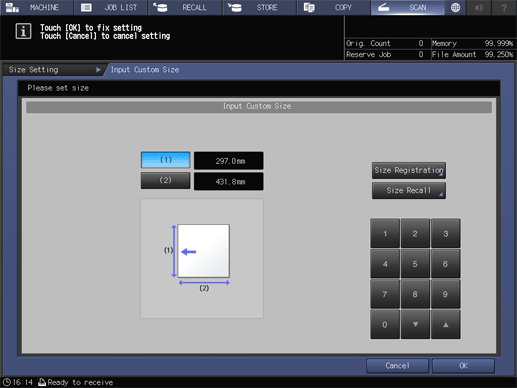

[Input Size]

Overview

Enter the scanning size.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [SCAN]?.

Reference

It is convenient to register frequently used custom sizes. For details, refer to [Size Registration].

Specifications

Category		Copy / Scan
Location	Machine	Touch Panel, Control Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		[(1)]	Enter the width size. Available range: 100 mm to 297.0 mm / 3.94" to 11.69"
		[(2)]	Enter the length size. Available range: 140 mm to 431.8 mm / 5.52" to 17"
		[Size Registration]	Registers a custom paper size.
		[Size Recall]	Recalls a registered custom size.
		Keypad	Used to enter numeric values.
		[+] / [,]	Increases or decreases the numeric value in steps of 0.1 mm / 0.005".
Remarks		-
Reference		-
Screen access		Touch panel - [SCAN] - Select a destination. - [Scan Settings] - [Size Setting] - [Custom Size] - [Input Size]
		Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Scan Initial Setting] - [Size Setting] - [Custom Size] - [Input Size]

Procedure

1

Select [(1)] or [(2)].

2

Use the on-screen keypad or the Keypad of the Control panel to enter the paper size.

3

Press [OK].

The entered value is set as the scanning size.
