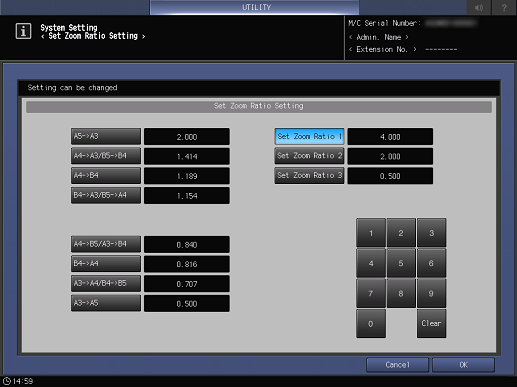

[Set Zoom Ratio Setting]
Overview
Change the preset registered zoom ratio.
It is convenient to register the frequently used values.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [User Setting]?.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Paper size zoom ratio key | Selects the paper size zoom ratio to change. | |
[Set Zoom Ratio 1] | Selects the target registered zoom ratio. Default: [Set Zoom Ratio 1]: 4.000 [Set Zoom Ratio 2]: 2.000 [Set Zoom Ratio 3]: 0.500 | ||
[Set Zoom Ratio 2] | |||
[Set Zoom Ratio 3] | |||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Cancel] | Moves to the previous screen without saving the settings. | ||
[OK] | Saves the settings and moves to the previous screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [User Setting] - [System Setting] - [Set Zoom Ratio Setting] | ||
Procedure
1
Press the key to change the registered zoom ratio.
2
Use the on-screen Keypad to enter the zoom ratio.
3
Press [OK].
