User's Guide

> User Settings > [Copy Initial Setting] - [Output Setting] > [Fold&Staple] > Screen

Screen

Overview
Screen Access
Screen

Overview

Set conditions for [Fold&Staple].

The selectable items vary depending on the optional devices mounted on this system.

Screen Access

Touch panel - [COPY] - [Output Setting] - [Fold&Staple]

Screen

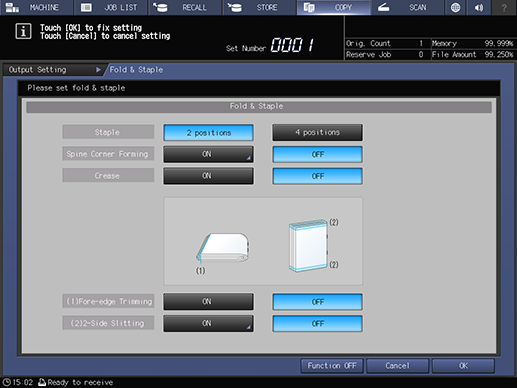

With SaddleStitcher SD-506 mounted:

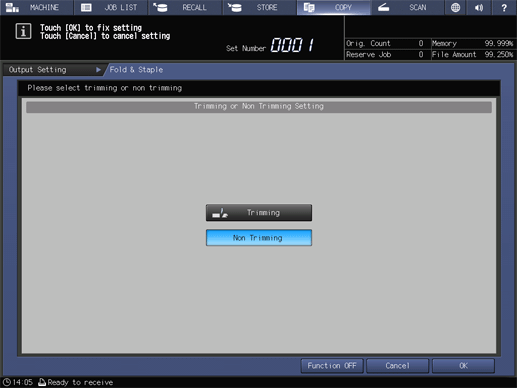

With Saddle Stitcher SD-513 mounted:

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Function OFF]

Turns the function off while maintaining the set information.
