User's Guide

> User Settings > [Shortcut Key Register] > [Quality Adj.(Copy)]

[Quality Adj.(Copy)]

Overview
Specifications
Procedure

Overview

Set the shortcut keys to display in [Quality Adj.] on the [COPY] screen.

It is convenient to set the frequently used items.

Tips
  • This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [User Setting]?.

Specifications

Category

Copy / Scan

Location

Machine

Control Panel

Printer driver

-

Application

-

Required options

-

Required items

-

Setting items

[Copy Density]

Selects the items to display as shortcut keys.

Maximum of 4 items can be selected.

[Background Removal]

[Red]

[Green]

[Blue]

[Hue]

[Saturation]

[Brightness]

[Sharpness]

[Contrast]

[Image Distinction Level]

[Screen Pattern]

[Color Balance]

Remarks

-

Reference

-

Screen access

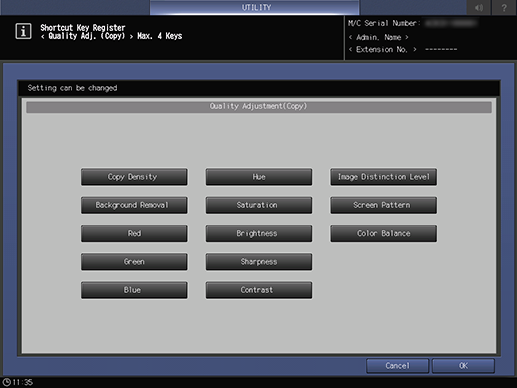

Control panel - Utility/Counter - [User Setting] - [System Setting] - [Shortcut Key Register] - [Quality Adj.(Copy)]

Procedure

1
Select the item to set.

Maximum of 4 items can be selected.

2
Press [OK].
