User's Guide

> COPY > [Output Setting] > [Perfect Bind] > Screen

Screen

Overview
Screen Access
Screen

Overview

Set the [Perfect Bind] function to bundle the output paper, glue the spine, and wrap it in a cover for bookbinding.

Screen Access

Touch panel - [COPY] - [Output Setting] - [Perfect Bind]

Screen

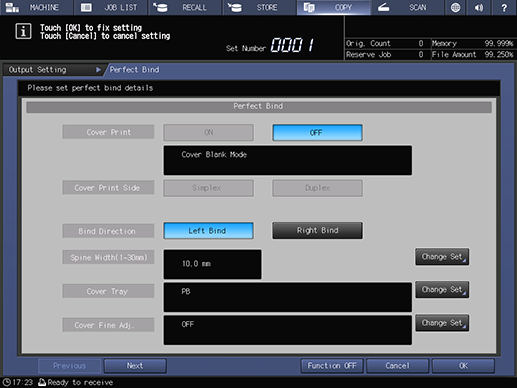

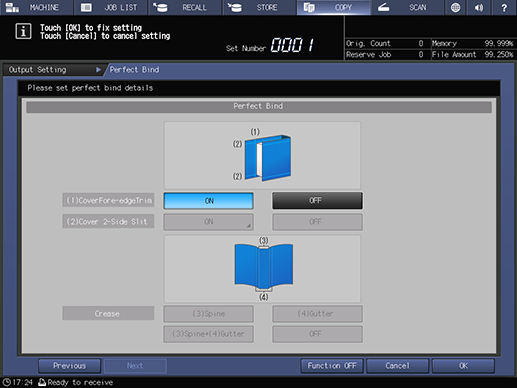

With Perfect Binder PB-503 mounted:

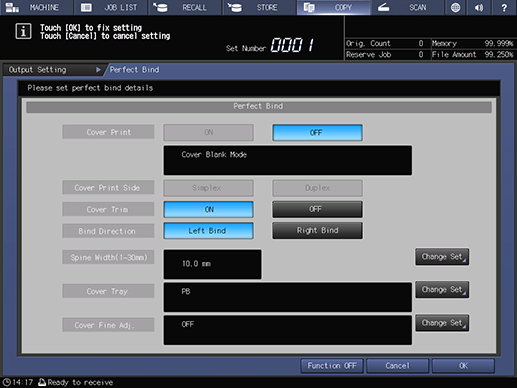

With Perfect Binder PB-503 and Saddle Stitcher SD-513 mounted:

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Previous]

Moves to the previous page.

[Next]

Moves to the next page.

[Function OFF]

Turns the function off while maintaining the set information.
