COPY | [Spine Corner Forming]

[Spine Corner Forming]

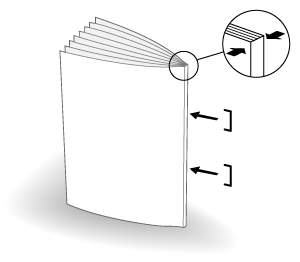

Form the spine corner for Fold & Staple paper.

NOTICE

The folded and stapled sheets are output to the Conveyance belt. Set the Delivery tray extension (tray) as preparation, and open the Stopper. Otherwise, the output paper may drop down from the Conveyance belt. Also, the full-load detection function of Saddle Stitcher SD-513 may not work.
When using thin paper that curls easily for Fold & Staple, output prints so that paper is curled toward the inside. Before outputting a booklet, print out just a few sheets to the Secondary (sub) tray, and check the direction of the curl. If the printed-out sheets are curled upward, the paper is curled inward when a booklet is created.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.

Tips

When [Spine Corner Forming] is selected, [Crease] is not available. After [Spine Corner Forming] is selected, even if [Crease] is enabled, the crease function is set. Even when [Crease] is enabled first, if [Spine Corner Forming] is selected, it changes to the crease function.

Reference

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel, Control Panel
	Printer driver	-
	Application	-
Required options		Saddle Stitcher SD-513 with Folding Unit FD-504 mounted
Required items		-
Setting items		[ON]	Forms the spine corner.
		[OFF]	Does not form the spine corner.
Remarks		-
Reference		To increase or decrease the [Spine Corner Forming] strength, make adjustments in [Flattening a Fold (Strength)]. For details, refer to [Flattening a Fold (Strength)].
Screen access		Touch panel - [COPY] - [Output Setting] - [Fold&Staple]
		Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Copy Initial Setting] - [Output Setting] - [Fold&Staple]

Press [ON].

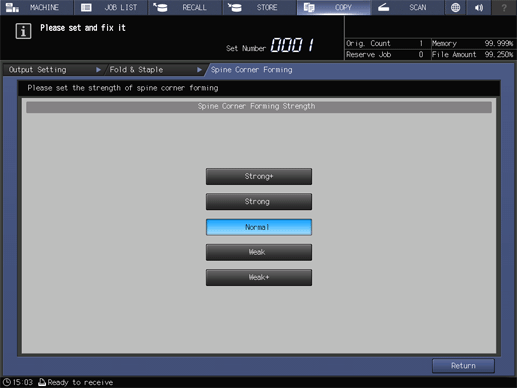

The setting screen is displayed.

Select the strength.

First, set to [Normal]. If the result is not desirable, change the strength.

Press [Return].

Press [OK].
