[Image Size Manual Setting]
Overview
Repeatedly copy the manually specified range on paper as many times as possible.
When repeating the entire original, set the original size. When repeatedly copying a portion of the images in the original, manually set the range of the images.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.
Tips
- Selecting [Manual Setting] automatically sets [x1.0] of [Zoom].
- The zoom ratio can be changed manually.
- The automatic image rotation function that rotates an image to suit the zoom ratio or paper orientation is not activated.
- Load the original on the Original glass, and scan it while the ADF remains open.
Reference
- For details about Auto Repeat, refer to What Is [Image Repeat]?.
Specifications
Category | Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Manual Setting] | Manually sets the image size. Range: 30 mm to 150 mm | |
[+] / [,] | Increases or decreases the numeric value in increments of 1 mm. Pressing [Manual Setting] allows you to set the value. | ||
[Input Numeric Keys] | Use the keypad to enter the numeric value. Pressing [Manual Setting] allows you to set the value. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [COPY] - [Application] - [Image Repeat] | ||
Procedure
1
Press [Manual Setting].
2
Enter the numeric value in [Horizontal Width(mm)] and [Vertical Width(mm)].
3
To enter the value using the keypad, press [Input Numeric Keys].

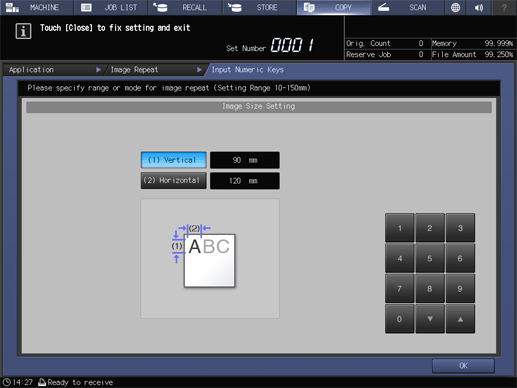

The [Image Size Setting] screen is displayed.
4
Select [(1) Vertical] or [(2) Horizontal], and use the on-screen keypad to enter the numeric value.
5
Press [OK].
