[Back Cover] - [Post Inserter Paper]
Overview
Configure the setting to use the paper in the Post inserter tray as the back cover of a booklet.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.
Tips
- When the Post inserter tray is selected, cover sheets cannot be printed.
- When the cover is set to both [Tray Paper] and [Post Inserter Paper] in [Back Cover], the paper loaded in the Post inserter is placed on the outside.
Specifications
Category | Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | PostInserter PI-502 | ||
Required items | - | ||
Setting items | [None] | Does not insert a back cover sheet. | |
Paper tray selection key | Selects a Post inserter tray for the back cover. | ||
[Quantity] | Sets the number of cover sheets. Range: 1 to 40 sheets This item is available when the Post inserter tray is selected. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [COPY] - [Application] - [Booklet] - [With Cover] | ||
Procedure
Sets the number of cover sheets.
1
Press [Quantity].

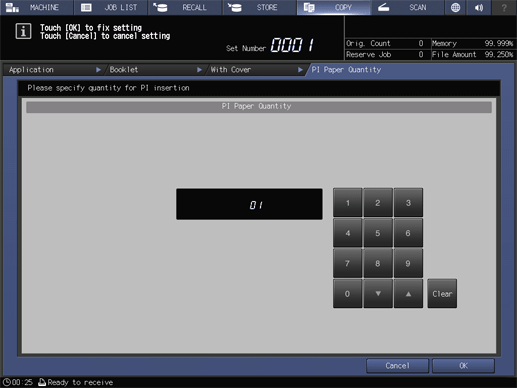

[PI Paper Quantity] is displayed.
2
Use the on-screen keypad to enter the number of cover sheets.
Pressing [,]/[+] increases or decreases the numeric value by 1.
Pressing [Clear] returns the entered numeric value to "0".
3
Press [OK].
