COPY | [Print Pos. Setting]

[Print Pos. Setting]

Set the stamp printing position.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.

Category		Copy / Scan
Location	Machine	Touch Panel, Control Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		[Upper Left]	Selects the print position.
		[Mid Left]
		[Lower Left]
		[Upper Mid]
		[Mid]
		[Lower Mid]
		[Upper Right]
		[Mid Right]
		[Lower Right]
		[Fine Adjustment]	Used to enter numeric values to adjust the print position.
Remarks		-
Reference		-
Screen access		Touch panel - [STORE] - [Annotation]
		Touch panel - [COPY] - [Application] - [Stamp] - [Annotation]
		Touch panel - [SCAN] - [Scan Settings] - [Application] - [Annotation]
		Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Scan Initial Setting] - [Application] - [Annotation]
		Control panel - Utility/Counter - [User Setting] - [Initial Setting] - [Store Initial Setting] - [Annotation]

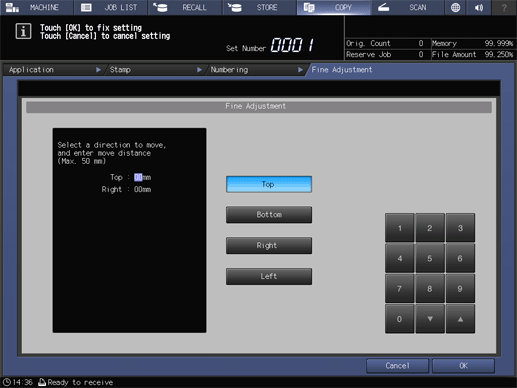

Fine-adjust the stamp printing position.

Press [Fine Adjustment].

The setting screen is displayed.

Select the key of the desired direction.

The entry field is displayed.

Use the on-screen keypad to enter the numeric value.

Pressing [,]/[+] increases or decreases the numeric value in increments of 1 mm.

Range: 0 mm to 50 mm (at the top, bottom, left, and right)

Press [OK].
