[Output Setting] Screen

Set finishing conditions when making a copy.

Select the output tray in the machine front view, and also select the bind direction, output side, and post-processing method.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-

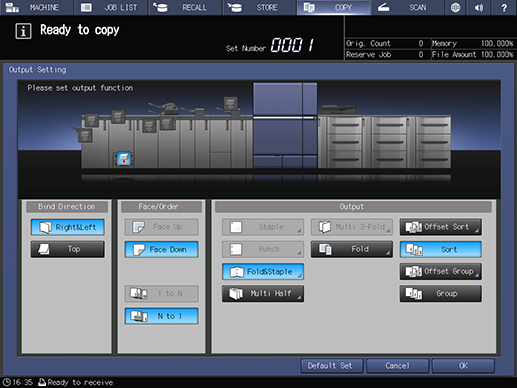

Setting items		Machine front view (Output function)	Displays the currently set output tray and the tray position that can be set to the output destination. The selectable tray varies depending on the mounted optional devices or the functions selected in [Output].
		[Bind Direction]	Sets the bind direction for 2-sided printing. For details, refer to [Bind Direction].
		[Face/Order]	Sets the output side orientation and the output order. For details, refer to [Face/Order].
		[Output]	Sets finishing processing such as stapling, punching, or folding. For details, refer to [Output].
Remarks		-
Reference		-
Screen access		Touch panel - [COPY] - [Output Setting]

Select an output tray.

Press "

" (output tray key) in the machine front view.

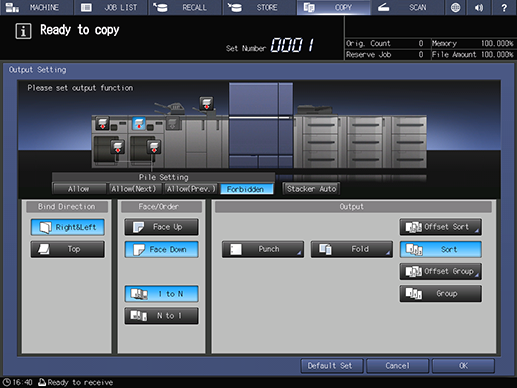

When Large Capacity Stacker LS-507 is mounted, [Pile Setting] is displayed, enabling you to forbid piling the previous and next jobs.

When 2 Large Capacity Stacker LS-507 units are mounted, [Stacker Auto] is displayed.

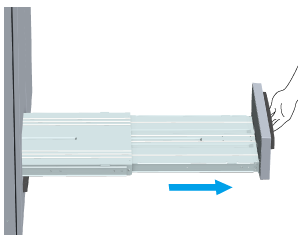

When the Conveyance belt of SaddleStitcher SD-506 is selected, pull out the tray.

NOTICE

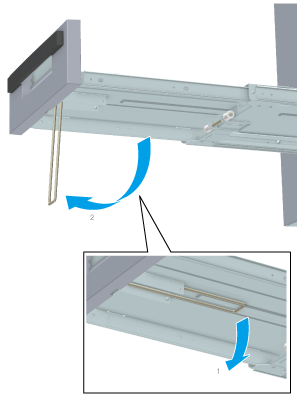

When using the Conveyance belt, be sure to fully pull out the tray and set up the stand under the tray.
Each output tray has a capacity limit. Be careful not to exceed the limit, otherwise unexpected problems may occur.
Never push the tray to its original position while the stand of the Conveyance belt remains set up.
