[Insert Page Setting]
Overview
Set the position to insert insertion paper using the page number.
If the Post inserter tray is selected, the number of insertion paper sheets can also be set.
Tips
- This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [COPY]?.
Specifications
Category | Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Insert Page] | Sets the page to insert insertion paper. Range: 1 to 20 characters (including commas and hyphens) | |
[Insert Quantity] | Sets the number of sheets to insert. Range: 1 to 40 sheets | ||
Keypad | Used to enter numeric values. | ||
[Del.] | Deletes the character on the left. | ||
[,] | Enters a comma (,). | ||
[-] | Enters a hyphen (-). | ||
[Clear] | Collectively deletes the entered characters. | ||
[*] / [)] | Moves the cursor position. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [COPY] - [Application] - [Insert Sheet] - [Change Set] of [Insert Paper Setting] - [Insert Page Setting] | ||
Procedure
1

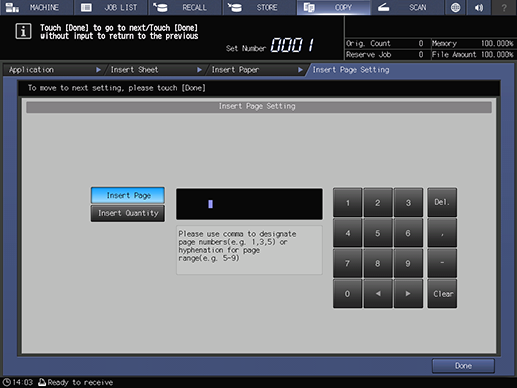

Press [Insert Page].
2
User the on-screen keypad to enter the page number of the desired insertion location.
To select consecutive pages, set the range using a hyphen (-) (example: 2-5). To select multiple pages, divide them using a comma (,) (example: 2,4,6).
The page numbers are automatically sorted in ascending order. The same page can be specified only once.
3
Press [Insert Quantity].
4
Use the on-screen keypad to enter the number of sheets to be inserted.
This setting is available when the Post inserter tray is selected.
5
Press [Done].
