JOB LIST | [Paper Size]

[Paper Size]

Set the paper size for insertion paper.

The setting is different between tab paper and other types of paper.

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		Tab Paper	[A4v]	Select the paper size for tab paper.
			[8.5e11v]
			[Tab Number Setting]	Use the on-screen keypad to set the number of tabs. Pressing [,]/[+] increases or decreases the numeric value by 1. Range: 1 to 15 Default: 5
		Paper other than tab paper	Paper size selection key	Selects the paper size.
			[Input Size]	Sets a custom paper size.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Image Page Edit] - [Change] - [Paper Size]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Image Page Edit] - [Insert Paper] - [Change] - [Paper Size]

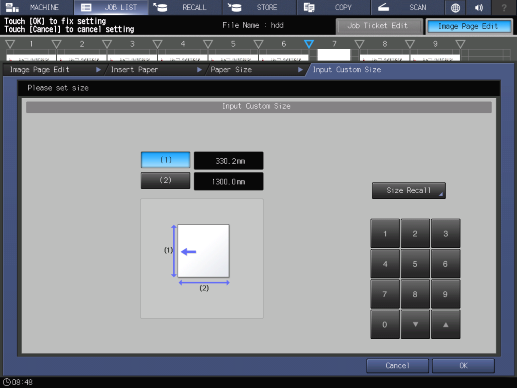

Sets the custom size for paper other than tab paper.

Press [Input Size].

The setting screen is displayed.

Select [(1)] or [(2)], and use the on-screen keypad to enter the numeric value.

Range: Widthwise (1) 100 mm to 330.2 mm, Lengthwise (2) 148 mm to 487.7 mm

Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.

To use the custom size registered in this system, press [Size Recall]. For details, refer to [Paper Size].

Press [OK].
