> JOB LIST > [Job Ticket] - [Job Ticket Edit] > [Crease] > Screen

Screen

Overview

Configure the setting to crease paper.

You can set the number of creases as well as the crease positions.

This function prevents toner peeling that occurs when paper is folded by creasing.

Tips

When [Crease] is set in [Output Setting] shown below, this setting is not available.

[Multi Half Fold]
[Multi Tri-Fold]
[Fold & Staple]

Tips

To set creases for perfect binding, select [Crease (PB)]. For details, refer to [Crease (PB)].

Reference

For details about the crease function, refer to What Is the [Crease]?.

Screen Access

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Crease]

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Crease]

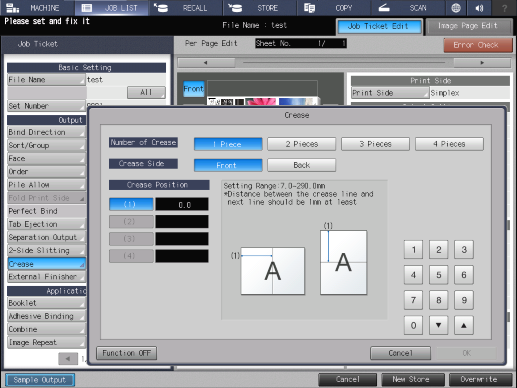

Screen

Common keys

Key name	Description
[Cancel]	Moves to the previous screen without saving the settings.
[OK]	Saves the settings and moves to the previous screen.
[Function OFF]	Turns the function off while maintaining the set information.
