[Size Type]
Overview
Set the paper size type for printing.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Standard] | Sets a standard paper size. | |
[Custom] | Sets a custom paper size. | ||
[Tab Paper] | Sets a tab paper size. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Paper Size] | ||
Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Paper Size] | |||

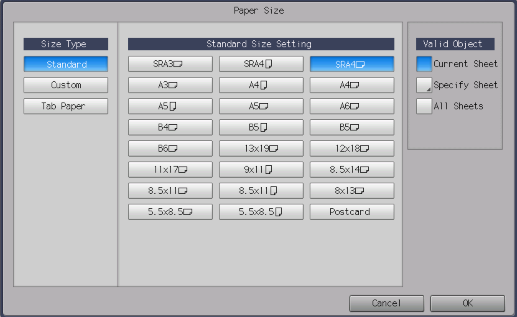

Procedure (Setting the Standard Size)
1
Press [Standard].
2
Select the standard size.
3
Press [OK].

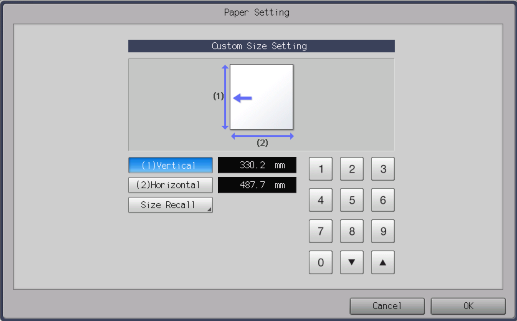

Procedure (Setting the Custom Size)
1
Press [Custom].
2
Select [(1)Vertical] or [(2)Horizontal], and use the on-screen keypad to enter the numeric value.
Range: [(1)Vertical]: 100 mm to 330.2 mm, [(2)Horizontal]: 148 mm to 487.7 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
To use the custom size registered in this system, press [Size Recall]. For details, refer to [Custom Size Setting].
3
Press [OK].

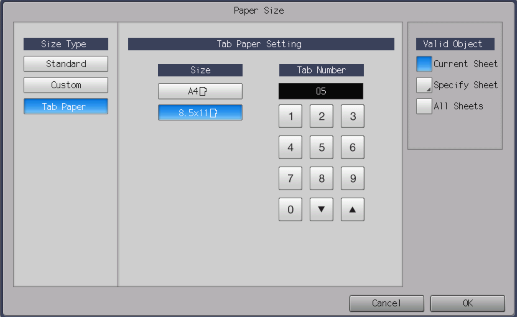

Procedure (Setting Tab Paper)
1
Press [Tab Paper].
2
Select the tab paper size in [Size].
3
Enter a number in [Size] using the keypad on the screen.
Default: 5
Range: 1 to 15
Pressing [,]/[+] increases or decreases the numeric value by 1.
4
Press [OK].
