[Job Ticket Edit]
Overview
Edit the print setting of the selected [Hold Job].
NOTICE
- The job ticket editing function is available on a product equipped with a scanner and HDD.
- The optional Paper Feeder Unit PF-713 and Upgrade Kit UK-112 are required to use the job ticket editing function in this system.
Tips
- [Job Ticket Edit] under [Hold Job] allows you to edit a copy job or scan job.
- An HDD store job cannot be edited. To edit, recall to a hold job, and store it. For details, refer to [Recall].

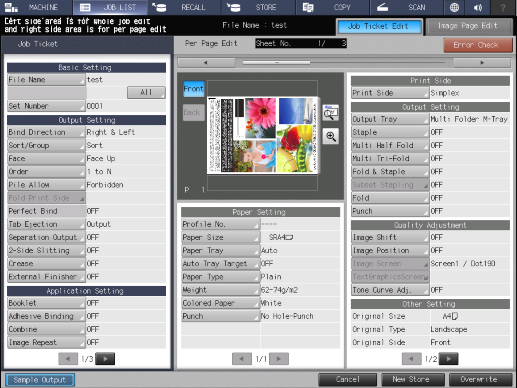

Screen and Description
Item | Description | |
|---|---|---|
[Job Ticket Edit] | Displays the [Job Ticket Edit] screen. | |
[Image Page Edit] | Displays the [Image Page Edit] screen. For details, refer to [Job Ticket] - [Image Page Edit]. | |
[Job Ticket] | Edit the print setting of the entire job. | |
[Basic Setting] | Sets the file name and the number of sets. | |
[Output Setting] | Sets job finishing conditions. | |
[Application Setting] | Configures the application setting of a booklet or adhesive binding. | |
[Other Setting] | Displays the non-target setting. For details, refer to [Other Setting]. | |
[Per Page Edit] | Edits each item setting for each job page. | |
[Sheet No.] | Displays the total number of sheets of the selected job and the currently selected sheet number. Press | |
Preview screen | Displays the sheet selected in [Sheet No.] on the preview screen. For 2-sided printing, press [Front] or [Back] to switch the front side and back side of the preview display. | |
[Paper Setting] | Configure the paper setting of the selected sheet. | |
[Print Side] | Sets the print side of the selected sheet. | |
[Output Setting] | Sets finishing conditions of the selected sheet. | |
[Quality Adjustment] | Adjusts the image quality of the selected sheet. | |
[Other Setting] | Displays the non-target setting. For details, refer to [Other Setting]. | |
[Color Sheets in One Set] | Check the number of sides (pages) for each color included in 1 job set. For details, refer to [Color Sheets in One Set]. | |
[,] / [+] | Switches the screen to display. | |
[Sample Output] | Prints a sample with the edited print setting. For details, refer to [Sample Output]. | |
[Cancel] | Moves to the previous screen without saving the settings. | |
[New Store] | Stores the print setting with image data as a new job. For details, refer to [New Store]. | |
[Overwrite] | Overwrites the changed print setting on the original job together with image data. For details, refer to [Overwrite]. | |
to select the sheet to change the setting.
in the upper-right of a page, it turns into
and is registered as a bookmark.
