Screen

Overview
Screen Access
Screen

Overview

Configure the setting to multiply fold paper in thirds.

The selectable items vary depending on the optional devices mounted on this system.

Screen Access

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Multi Tri-Fold]

Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Multi Tri-Fold]

Screen

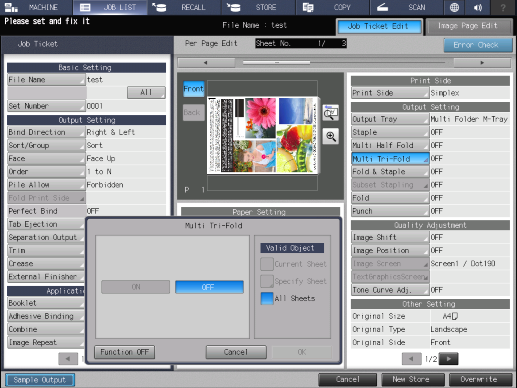

With SaddleStitcher SD-506/Finisher FS-541 mounted:

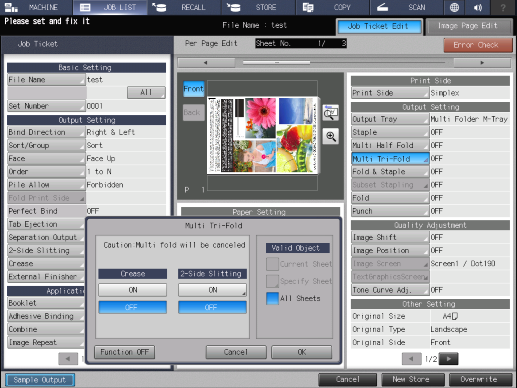

With Saddle Stitcher SD-513 mounted:

Common keys

Key name

Description

[Cancel]

Moves to the previous screen without saving the settings.

[OK]

Saves the settings and moves to the previous screen.

[Function OFF]

Turns the function off while maintaining the set information.
