[Sort/Group]
Overview
Set the sorting method when outputting a hold job.
This function is convenient when you print multiple documents because they are delimited by the specified number of sheets or number of sets.
Tips
The output destination, offset method, and settable number of sets vary depending on the optional devices mounted on this system. For details, refer to the following.
Specifications
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | This function requires one of the following optional devices. Large Capacity Stacker LS-507 Finisher FS-541 Output Tray OT-512 | ||
Required items | - | ||
Setting items | [Offset Sort] | Outputs (offset output) prints in the same page order as the original by the specified number of sets while delimiting them for each set. You can set the number of sets or number of sheets to offset. Range: 1 to 9,999 | |
[Sort] | Sequentially outputs prints in the same page order as the original by the specified number of sets. Offset output is not performed. | ||
[Offset Group] | Prints the original for each page by the specified number of sets, and outputs (offset output) prints while delimiting them for each original. You can set the number of sets or number of sheets to offset. Range: 1 to 9,999 | ||
[Group] | Prints the original for each page by the specified number of sets, and outputs prints in the original order. Offset output is not performed. | ||
[Cancel] | Moves to the previous screen without saving the settings. | ||
[OK] | Saves the settings and moves to the previous screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Sort/Group] | ||
Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Sort/Group] | |||
Procedure
Set offset output.
1
Select [Offset Sort] or [Offset Group].

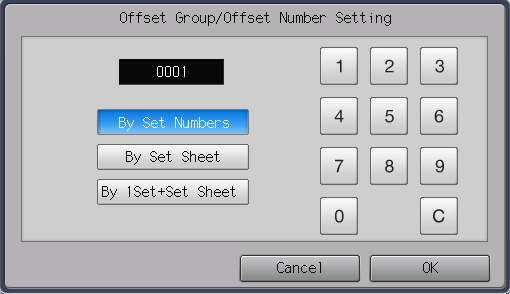

The setting screen is displayed.
2
Set the number of sheets or number of sets to delimit when printing.
[By Set Numbers]: Delimits prints by the specified number of sets before printing out.
[By Set Sheet]: Delimits prints by the specified number of print sheets to output.
[By 1Set+Set Sheet]: Sets 2 types of delimit timings. Prints are delimited by the specified number of print sheets and by each set, and then output.
3
Use the on-screen keypad to enter the numeric value.
Range: 1 to 9,999
To clear the numeric value, press [C].
4
Press [OK].
