> JOB LIST > [Job Ticket] - [Job Ticket Edit] > [Multi Tri-Fold] > [Crease]

[Crease]

Overview

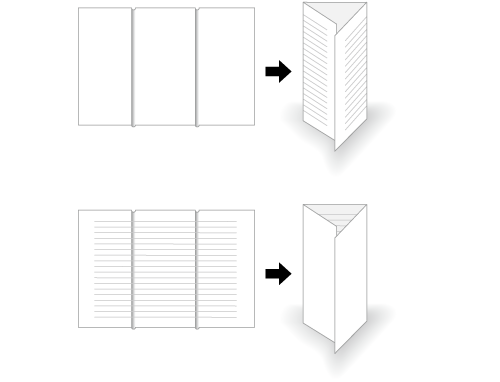

Configure the setting to crease only the covers for Multi Tri-Fold.

NOTICE

Only 1 sheet is folded for creasing. It is not folded multiply.
A misalignment may occur between the fold position and crease position depending on the paper weight. In such a case, adjust the crease position to suit the fold position. For details, refer to [Tri-Fold Crease Position].

Tips

[Valid Object] cannot be changed in [All Sheets] because it is fixed.

Reference

For details about Multi Tri-Fold, refer to What Is the [Multi 3-Fold]?.

Specifications

Category		Print Workflow, Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted
Required items		-
Setting items		[ON]	Creases.
		[OFF]	Does not crease.
Remarks		-
Reference		-
Screen access		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Multi Tri-Fold]
		Touch panel - [MACHINE] - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Multi Tri-Fold]
