SCAN | [From Address Setting]

[From Address Setting]

Set the sender's email address when sending data by email.

The address can be selected from the pre-registered list or entered directly.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is the [SCAN]?.

Tips

When the sender's email address is pre-registered as 1 destination, it can be selected from the address list. For details, refer to [Scan Address Register].

Category		Copy / Scan
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		Address key	Displays the registered addresses. Press the key to select a sender address.
		[Input Address]	Manually enter an address. Sets an unregistered address for the sender. For details, refer to [Address].
		[Search]	Searches for the target address from the registered addresses. For details, refer to [Search].
		[A to Z]	Displays a list of addresses for which [Reference Name] is registered with alphabetic characters.
		[Others]	Displays a list of addresses for which [Reference Name] is registered with characters such as symbols other than alphabetic characters.
		[Main]	Displays a list of frequently used addresses that are registered in [Main].
		[All]	Displays all of the registered addresses.
		[+] / [,]	Switches the address list page. Up to 12 addresses are displayed on each page.
Remarks		-
Reference		-
Screen access		Touch panel - [SCAN] - [E-mail] - [Option Setting] - [From Address Setting]

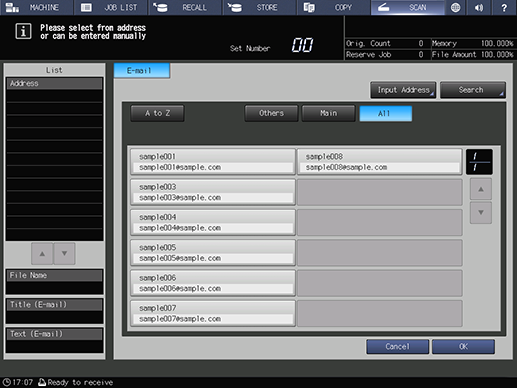

To select an address from the address list, select the address key of the target email address.

To manually set the address, press [Input Address].

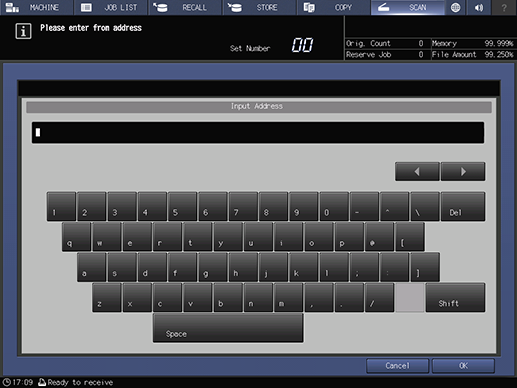

The entry screen is displayed.

Enter the sender's email address.

This item can be specified using up to 256 single-byte characters.

For details about how to enter text, refer to Entering Text.

Press [OK].
