Speed Adjustment
Adjust each roller speed. The adjustable roller varies depending on the mounted optional devices.
Menu item | Description | Setting |
|---|---|---|
Registration Speed | Adjust the registration roller speed. This option is used when lines occur in the main scanning direction. | Adj. Range: -50 ~ +50 1 step = 0.01% [+] Fast [-] Slow |
Fusing Speed (FrontSide) | Adjust the fusing roller speed (front side). This option is used when lines occur in the main scanning direction. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
FusingSpeed(BackOffset) | Adjust the fusing roller speed (back side). This option is used when lines occur in the main scanning direction. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Reverse De-Curler Speed | Adjust the reverse de-curler roller speed. This option is used when wrinkles occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Reverse Speed(RevExit) | Adjust the reverse output roller speed. This option is used when paper jams occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Reverse Speed(ADU) | Adjust the ADU reverse roller speed. This option is used when paper jams occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Banner Reverse Speed1 | Adjust the banner reverse roller speed. This option is used when paper jams occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Output De-Curler Speed | Adjust the output de-curler roller speed. This option is used when wrinkles occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
LCT BannerRegist.Speed | Adjust the LCT pre-registration roller speed at banner printing. This option is used when lines occur in the main scanning direction. | Adj. Range: -15 ~ +5 1 step = 1% [+] Fast [-] Slow |
Regist. Speed(Banner) | Adjust the registration roller speed in banner reverse mode. This option is used when lines occur in the main scanning direction. | Adj. Range: -50 ~ +50 1 step = 0.01% [+] Fast [-] Slow |
Banner Reverse Speed2 | Adjust the loop roller speed in banner reverse mode. This option is used when paper jams occur. | Adj. Range: -200 ~ +200 1 step = 0.01% [+] Fast [-] Slow |
Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

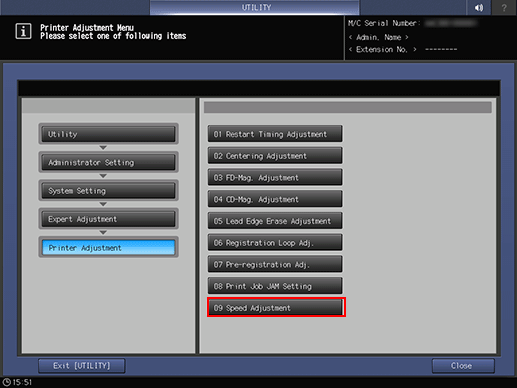

Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, Printer Adjustment, and Speed Adjustment in sequence.

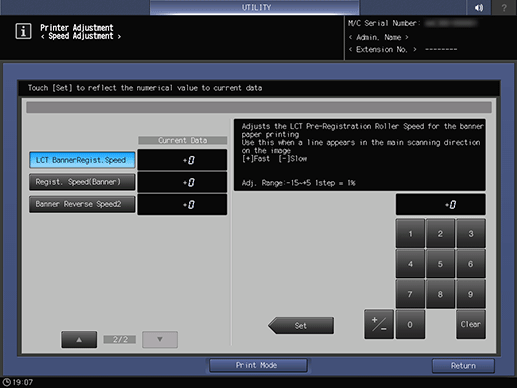

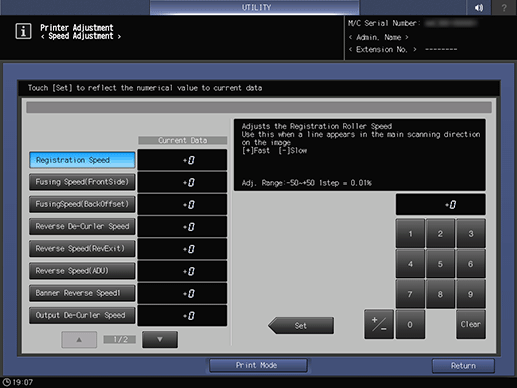

The Speed Adjustment screen is displayed.
Select the roller you want to adjust, and make adjustments.
Use the touch panel keypad or the keypad on the control panel to enter the setting data.
supplementary explanationUse +/- to specify the value to be positive or negative.
supplementary explanationPress Set to change the Current Value.
Press Print Mode.
The PRINT MODE screen is displayed.
Select paper, then press Start on the control panel.
Repeat steps 3 to 5 until the desired result is obtained.
Press Return to return to the Printer Adjustment Menu screen.
