Power Save Function Setting

Select the power save mode to be activated when Power Save is pressed on the control panel. Select also the time to activate Auto Low Power/Auto Shut OFF. You can also select the condition of Auto Wake-up Cond. to activate the machine when a print job is received during Auto Shut OFF.

Power Save Function: Auto Low Power, Auto Shut OFF

Auto Low Power: --- min., 5 min., 10 min., 15 min., 30 min., 60 min., 90 min., 120 min., 240 min.

Power-saving time periods, 90 min., 120 min., and 240 min., may not be displayed depending on regions.

Auto Shut OFF: --- min., 0 min., 1 min., 30 min., 60 min., 90 min., 120 min., 240 min.

Auto Wake-up Cond.: All Jobs

  1. Follow the procedure on Displaying the [User Setting Menu] Screen to display the User Setting Menu screen.

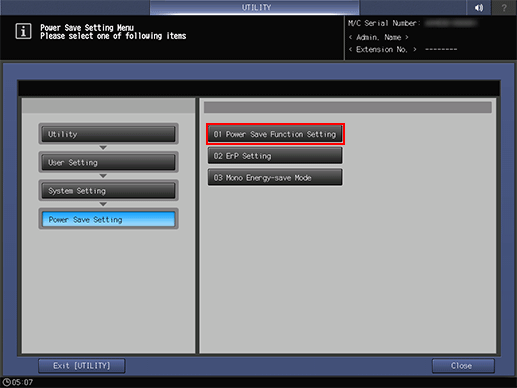

  2. Press System Setting on the User Setting Menu screen, and then press Power Save Setting and Power Save Function Setting in sequence.

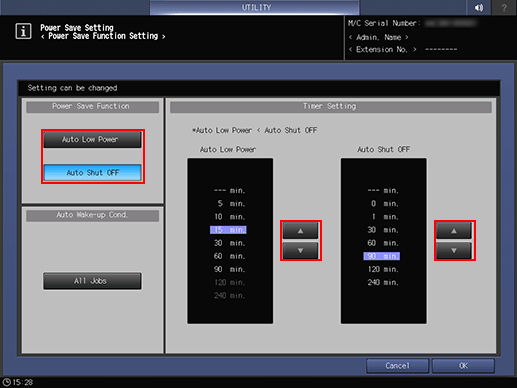

  3. Select the Power Save mode to be set manually by pressing Power Save on the Control Panel, by pressing Auto Low Power or Auto Shut OFF under Power Save Function.

  4. Specify the period of time to elapse before Auto Low Power is activated.

    • supplementary explanationUse the down or up key provided under Auto Low Power on the right side of the screen to select the desired period of time.

    • supplementary explanationIf Auto Low Power is not needed, set Auto Shut OFF to another time than --- min., and select --- min. for Auto Low Power.

    • supplementary explanationThe period of time selected for Auto Low Power cannot exceed that selected for Auto Shut OFF.

    • supplementary explanationThe highlighted indication of the time in Auto Low Power area goes dark when the same period of time as that of Auto Shut OFF is selected. In this case, Auto Shut OFF functions instead of Auto Low Power.

  5. Select the period of time to elapse before Auto Shut OFF is activated.

    • supplementary explanationUse the down or up key provided under Auto Shut OFF on the right side of the screen to select the desired period of time.

    • supplementary explanationSelect ---min. to deactivate the Auto Shut OFF function.
      Setting Auto Shut OFF to --- min. changes the setting of Auto Low Power to 5 min., and then allows you to change it to another time, other than --- min..

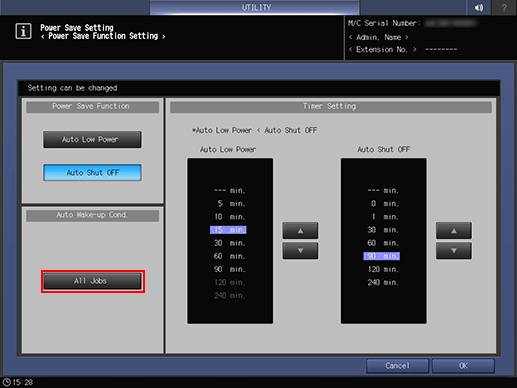

  6. Select the Auto Wake-up conditions. (Displayed when Image Controller IC-605 is mounted.)

    • supplementary explanationIf you press All Jobs to highlight the button, the Shut Off mode is automatically deactivated even during Auto Shut OFF, allowing all print jobs to be outputted.

    • supplementary explanationIf you unhighlight the button, the Shut Off mode is automatically deactivated only when the machine receives print jobs from PS Plug-in driver or Hot Folder allowing them to be outputted. To output other jobs, exit the Shut Off mode before using the machine.

  7. Press OK to complete the setting.

    • supplementary explanationTo cancel the change, press Cancel. In either case, the screen returns to the Power Save Setting Menu screen.
