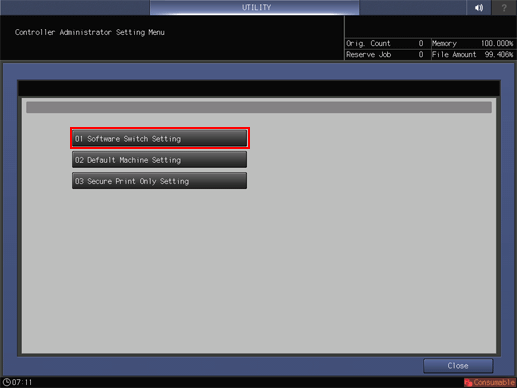

Software Switch Setting

1

The paper size should be identified using the CropBox value (trimming size) when PDF Direct Print is performed. In general use, the paper size is identified based on the MediaBox value (media size).

The paper size will be identified by using the CropBox value (trimmed size) for the PDF file.

2

When using the LPR command to group multiple print jobs in a single file, the operation terminates with an error and does not complete the output.

Regardless of the spool setting for the Controller, the job will be executed upon receiving the entire data (file). Note that this setting may slow down the printing performance.

Receivable Max. File Size per file is 2 GB for this operation. The change of this setting will not affect other larger files.

After the change, turn OFF/ON the sub power switch to apply the setting.

4

During output of multiple PostScript data in a single file over network, multiple data are grouped in a single job and output.

Ctrl-D will be taken as a job delimiter, and data will be output as multiple jobs.

5

During output of multiple PostScript data in a single file via USB interface, a single job is divided into multiple jobs and output. Or, an error page may be output instead.

Ctrl-D will not be taken as a job delimiter, and data will be output as a single job.

7

When outputting multiple jobs in one collective file,whether or not to distinguish the output as multiple jobs by treating the PJL JOBNAME and PJL EOJ NAME commands as separators should be selectable.

Setting value:

Off: Output in one collective file without dividing the output into multiple jobs.

On: Output in multiple jobs.

9

The quality of thumbnails displayed by Print Manager has been improved for clear display. However, the HDD space may decrease when the file capacity increases. An option to suppress quality improvement should be provided.

Setting value:

Off: Improve the quality.

On: Do not improve the quality.

If turned On, the characters and lines of thumbnails may not fully legible.

11

The Auto setting of the machine for paper feed should invariably be used.

Paper feed will always be managed using the Auto setting of the machine, regardless of the tray settings from the printer driver.

12

A file name specified by the LPR command should be displayed as the Job Name on the Job List of this machine, rather than displaying the job name that has been set by this machine or printer driver.

The job list will display file names specified in the LPR command as job names.

13

Attempting to install fonts with the Font Management Utility results in a time-out error.

Time-out errors will be avoided. Note that the font list of the Font Management Utility will display HDD as the font types for RAM fonts.

14

AppleTalk should be enabled.

Select “On” to display the AppleTalk setting on Web Connection. In this AppleTalk setting, change to ON.
This is not displayed on the control panel of the machine.

15

On Mac OS X or later, selecting cover sheet insertion and specifying the body by multiple copies results in an output of only one copy.

Prints will be output as the specified number of copies.

Note that an error page may be output for a job if it contains font data or EPS data.

16

The banner page should be printed if the LPR command (-J) is used in the Mac OS.

The banner page will be output.

Note that the banner will also be output when using the LPR port from the printer driver.

17

When the original contains both the 5.5  8.5 long edge feed size and the 8.5  11 short edge feed size, the 8.5  11 short edge feed paper cannot be Z-folded even if specified.

The 8.5  11 short edge feed paper can be Z-folded even when the original contains both the 5.5  8.5 long edge feed size and the 8.5  11 short edge feed size.

25

When the original contains multiple sizes including the 8.5 11 long edge feed size, a print job using the PPD driver identifies that size as the 9 11 long edge feed size.

Output is made in the 8.5 11 long edge feed size.

26

PostScript error Limitcheck occurs.

The occurrence of PostScript error Limitcheck will be reduced.

*When printing a large amount of jobs or large size jobs, Limitcheck may occur.

After the change, turn OFF/ON the sub power switch to apply the setting.

27

When certain PS data is output, an error occurs. The PostScript (Level 1) commands should be supported.

Setting value:

Off: Do not support the PostScript (Level 1) commands.

On: Support the PostScript (Level 1) commands.

If turned On, the following commands for Level 1 become available.

lettertray, legaltray, ledgertray, a3tray, a4tray, b5tray, 11x17tray

- After the change, turn OFF/ON the sub power switch to apply the setting.

28

Cannot edit the job stored in the HDD using the PPD driver in Print Manager.

Edit is allowed. However, print may slow down.
Also, setting No.48/49 to Save or Save & Print
allows you to print.

29/30

The color conversion in controller-specific style cannot be made in printing without using a printer driver or Hot Folder.

In this case "the color conversion in controller-specific style" means the color conversion settings specified using Color Centro.

The color conversion method can be changed for printing without using a printer driver or Hot Folder.

After the change, turn OFF/ON the sub power switch to apply the setting.

Setting value:

• 29/30 = Off/Off: An embedded profile will be used instead of the color conversion method in controller-specific style.

• 29/30 = On/Off: The color conversion method in controller-specific style will be used and the embedded profile will not be used.

• 29/30 = Off/On: The color conversion method in controller-specific style and also the embedded profile will be used.

31

For PDF direct print jobs, the usage of Device Colors should be changed.

Setting value:

Off: Does not use Device Colors.

On: Uses Device Colors.

32

During conversion from PDF to PostScript files, the complicated objects such as transparent ones may fail to convert.

The conversion system will be supported by switching option.

Setting value:

Off: Convert every object

On: Convert a whole page altogether

33

When outputting PCL data in duplex mode, blank pages on back sides are ignored.

Blank pages on back sides will also be printed. These blank pages will not be charged.

34

Having a large number of PS fonts downloaded, the machine may take a long time to print the PS font list.

The machine can improve the print speed for PS font list by not outputting samples of downloaded fonts but providing font names only on the font list.

36

When PCL XL/TIFF data of mixed originals (A4 long edge feed/short edge feed) is output, landscape originals can have a binding position different from that of the same originals output from the PS driver.

The binding position will be kept similar to that in output from the PS driver.

38

Since printing with Linux always results in banner output, this banner output should be disabled.

Disable the LPR command -C option (banner generation).

Setting value:

Off: Enable -C option

On: Disable -C option

40

A file stored in the Hot Folder should be printed using a paper size that is closest to that of the original in the paper tray.

When the output paper size is set to Auto, the output tray is set to Auto, and this setting is set to On, the paper size closest to the original size is selected from the paper trays. However, if there is no appropriate paper, the original is printed in the paper size normally selected by APS (Auto Paper).

43

If MIB (kmNetHttpdEnable) is changed from disable to enable, the network setting on the control panel, HTTP Server Setting, becomes Enable but the setting on Web Connection is not changed. Select whether the setting on the control panel synchronizes the setting on Web Connection

Setting value:

Off: Does not synchronize the control panel and Web Connection.

On: Synchronizes the control panel and Web Connection.

44

Sub folders should be checked when performing SMB browsing to computers that have many shared folders.

Check the subfolder box. However, it may take several minutes.

45/46

The color mode should be specified when printing data without using the printer driver and Hot Folder.

The color mode can be specified.

Setting value:

• 45/46 = Off/Off: Auto Color

• 45/46 = Off/On: Full Color

• 45/46 = On/Off: Gray Scale

• 45/46 = On/On: Auto Color

48/49

Printing and/or saving should be available regardless of the selection of printer driver (PCL, PS Plug-in, PPD).

The following settings are forcibly specified.

Setting value:

• 48/49 = Off/Off: OFF

• 48/49 = Off/On: Print

• 48/49 = On/Off: Save

• 48/49 = On/On: Print & Save

51

When sending a job by Hot Folder which requires paper larger than the maximum paper size supported by the machine, the center part of the page should be printed in real size instead of an error report.

Off: Prints an error page (For PS or PDF)

Prints in reduced size. (For TIFF)

On: Prints the center in real size

• This setting is available for PS, PDF and TIFF.

• This setup is available only when the Poster Print (Divided mode, etc) is disabled.

Restrictions

Restrictions on the PostScript file, PDF file

When Off is selected, an error page is output if the original size exceeds the maximum paper size supported on this machine.

When the setup is On, if the page size is larger than 1,600 2,100 mm / 62.99 82.68", an error page is output.

Restrictions on the TIFF file

When the setup is On, if the page size is larger than 900 1,320 mm / 35.43 51.97", image may be misaligned.

54

Specific PS or PDF files cannot be printed because CPSI stops.

The CPSI band size can be changed to avoid CPSI from stopping. Changing the band size can cause reduced performance depending on the file.

Setting value:

Off: Not change the band size

On: Change the band size

*A processing unit to process a job is called the band size.

After the change, turn OFF/ON the sub power switch to apply the setting.

55

Use this function to print the crop marks of a monochrome page in only black (K), not CMYK, when printing data with crop marks.

Setting value:

Off: Print the crop marks of a monochrome page in CMYK

On: Print the crop marks of a monochrome page in black (K).

59

Set to echo back EOT when the code EOT 0x04 is received when using RAW protocol.

Setting value:

Off: Do not echo back EOT

On: Echo back EOT

61

Borderless printing should be available for a job created by the PCL5 command.

Borderless printing is available for a job created by the PCL5 command.

Setting value:

Off: No borderless printing

On: Use borderless printing

62/63

The status notification mail for completing a print job should be sent without using the PS Plug-in driver.

If the following are set, the notification can be mailed to the Administrator's address.

Setting value:

62/63 = Off/Off: Do not send a notification mail.

62/63 = Off/On: Always send a notification mail to Administrator's address.

62/63 = On/Off: Send a notification mail to the Administrator's address only when an error occurs.

66

When printing, the settings that are set with the printer driver or Hot Folder are prioritized over the settings that are set with Direct Print Setting in Controller in the machine.
The settings that are set with Direct Print Setting should be prioritized.

Setting value:

Off: Prioritizes the settings in the printer driver/Hot Folder.

On: Prioritizes Direct Print Setting.*

*Direct Print Setting can be also set in the Administrator Setting in Web Connection.

71

Whether the form of the PS Plug-in driver is transparent or not should be selectable.

Setting value:

Off: Makes the form transparent, regardless of the object

On: Does not make the form transparent, regardless of the object

Restrictions

If a custom screen is set, this setting does not apply.

73

A way of handling a job that is different from paper settings should be changed.
Select to stop the job temporarily and check it, or to save the job to the HDD to continue printing the following jobs.

Setting value:

Off: Stops temporarily

On: Does not print, and saves to the HDD (Displayed in the Hold Job of Job List)

Restrictions

• Only when normal print or spool print are selected, you can apply this feature.

• The available printer drivers is the PS Plug-in driver.

• The application is Hot Folder only.

• If printing with banner pages when On is set, the banner pages are not printed.

74/75

A way of handling a margin of RGB value error for gray replacement should be changed.
The RGB values may not be equal on the gray scale images on Microsoft Office applications.
In such a case, the error must be tolerated to perform gray replacement. (Otherwise, the images are treated as color.)
To solve this issue, set a margin of error that deems the R, G and B values to be equal.

Set a margin of RGB error.

Setting value:

• 74/75 = Off/Off: ±0

• 74/75 = On/Off: ±3

• 74/75 = Off/On: ±5

• 74/75 = On/On: ±10

77

How to save the PPML file in Print Manager and change the print quantity for each page.

Setting value:

Off: Does not permit the storage of a PPML file.

On: Permits the storage of a PPML file.

When the setup is On (to save the PPML file):

• The re-RIP is not executed on the Job Edit in Print Manager.

• You cannot copy, re-order the page on the Page Edit in Print Manager. But, the inserting a blank page is possible.

79

When printing an image that is shifted with the image shift function on the original that is larger than the standard size with Hot Folder (PDF only), any part of the image should not be missed.

This setting will shift an image with RIP to prevent any part of it from being incompletely printed.

Setting value:

Off: Not shift an image with RIP

On: Shift an image with RIP

Restrictions

• This setting is available for the front side of paper, not for the back.

• This may not function properly if mixed-size originals or finishing processing is selected.

• Available for PDF Direct printing only.

80

Use this function if you need the image-shift function (PDF only) of the switch number 79 to also apply to PS jobs.

This setting will shift an image with RIP to prevent any part of it from being incompletely printed.

Setting value:

Off: Not shift an image with RIP

On: Shift an image with RIP

Restrictions

• Switch 79 needs to be turned On.

• This setting is available for the front side of Hot Folder, not for the back.

• This may not function properly if mixed-size originals or finishing processing is selected.

• This is invalid if image shifting is set by the PS Plug-in driver. When you use the PS Plug-in driver, turn this setting Off.

81

When an original with color and black & white mixed is output from Apogee, they cannot be distinguished automatically in the application side; therefore, this machine processes such an original in auto color mode.

The Auto Color mode slightly reduces productivity, so output such a mixed original in full color mode to prevent productivity from being reduced.

Setting value:

Off: Processes a job output in CMYK from Apogee as Auto Color.

On: Processes a job output in CMYK from Apogee as Full Color.

82

The software normally sends E-mail alerts when paper runs out, but if you need E-mail alerts to be sent before paper runs out (when the job bar in Schedule turns yellow), then go to Network Setting - NIC Settings - Detail Settings - Status Notification Setting - Replenish paper tray.

Change the setting for Replenish paper tray under Status Notification Setting.

Setting value:

Off: Notify when the tray runs out of paper

On: Notify before the tray runs out of paper

83

Select whether to save scan data sent to the OpenAPI application (Dispatcher Phoenix) in separate files for each page or all in one file.

Setting value:

Off: Create a separate file for each page

On: Put all pages in one file

The following formats can be used to save scan data in separate files for each page, or all in one file.

• PDF

• TIFF

• JPEG (Divided only)

84

The machine should support the LPQ -P command used on Linux.

Setting value:

Off: The machine does not reply anything even if you enter the LPQ -P command.

On: If you enter the LPQ -P command, the machine replies Ready or Not Ready depending on the machine status.

The specifications for Ready and Not Ready are as follows:

• Ready: Can execute jobs

• Not Ready: Cannot be recovered automatically (in the case of errors)

89

All the setting information should be printed in black.

Setting value:

Off: Does not print all text in black.

On: Prints all text in black.

91

When using gray replacement on gradation objects in APPE, surrounded colors are affected in addition to the target color.

Use this function to allow users to select whether to perform gray replacement on gradation objects, or not perform gray replacement and preserve the surrounding colors.

Upgrade Kits (UK-104 and UK-218) are required to use the APPE function.

Off: Perform gray replacement on gradation objects.

Note that surrounding colors will be affected, as well as the target color of the gray replacement.

On: Do not perform gray replacement on gradation objects.

This will preserve the colors in the surrounding area.

93

Use this function if you want to stop the machine from printing data if it contains special colors not registered in the controller, and instead temporarily save the data to the hard drive, produce an error message and wait for a user response.

Set the machine to temporarily save the printing data to the hard drive, produce an error message and wait for a user response.

Setting value:

Off: Do not temporarily save to hard drive.

On: Temporarily save to hard drive.

Restrictions

• Only when normal print or spool print are selected, you can apply this feature.

• The available printer drivers is the PS Plug-in driver.

• The application is Hot Folder only. But, when a PDF file is output, APPE is not available. CPSI is available.

• If printing with banner pages when On is selected, the banner pages are not printed.

94

When PPML data is printed on mixed-size sheets, and uses recyclable object(s), some pages have areas missing.

Use this function to adjust the rotational position setting to ensure that no missing areas occur, even when using recyclable objects.

Setting value:

Off: Disable rotational position on recyclable objects.

On: Enable rotational position on recyclable objects.

95

The PS commands for specifying paper trays, MediaPosition1(tray2) and MediaPosition2(tray3), should be converted to the ones for specifying paper colors, MediaColor(Other) and MediaColor(White) to use the automatic selection function of paper trays.

Setting value:

Off: Do not convert the commands

On: Convert as follows:
MediaPosition1toMediaColor(Other)
MediaPosition2toMediaColor(White).

The specifications for the MediaColor commands are as follows:

• MediaColor(other): TraytoAuto, paper colortoothers

• MediaColor(white): TraytoAuto, paper colortowhite

97

Unnecessary tab paper should be output during Printgroove printing.

Setting value:

Off: Do not output.

On: Output.

98

The spine cover should not be blank when Cover Print 2 in 1 is selected in Perfect Binding.

Setting value:

Off: Makes the spine cover blank.

On: Does not make the spine cover blank.

101

Although the machine performs transmission processing for each status (more than once) when @PJL INFO STATUS command is received and transmitted, statuses should be merged to perform a single transmission processing.

Setting value:

Off: Perform transmission processing for each status

On: Merge statuses to perform a single transmission processing

102

Change the order of JobStart notice with @PJL USTATUS_JOB_ON command from
Not the following order: JobStart1toJobStart2to…JobEnd1toJobEnd2…,
in the following order: JobStart1toJobEnd1toJobStart2toJobEnd2…, the JobStart notification timing should be changed when the first sheet was output.

Setting value:

Off: The JobStart notice is given after all jobs are received

On: The JobStart notice is given after the first sheet is output

103

If @PJL EOJ NAME is written in a file, the job is divided and an unexpected number of pages may be returned.

To solve this problem, the @PJL JOB NAME and @PJL EOJNAME job names are judged and a single job is returned only when the job names match.

Setting value:

Off: Do not judge the @PJL JOB NAME and @PJLEOJ NAME job names.

On: Judge the @PJL JOB NAME and @PJLEOJ NAME job names.

To judge the job names, turn Switch 7 Off.

107

Hot Folder of this machine should be able to output PCL 5e files.

Setting value:

Off: Do not support PCL 5e

On: Support PCL 5e

If turned On, the machine outputs a large amount of pages on which binary data are printed when handling file formats that are not supported by Hot Folder of this machine.

108

The machine should not output a large amount of pages on which binary data are printed when file formats that are not supported are output from other than Hot Folder (such as Direct Print).

Since those formats are output based on PCL 5e, printing binary data can be prevented by not supporting PCL 5e. If 'On' is selected, they will not be output but treated as errors.

Setting value:

Off: Support PCL 5e

On: Do not support PCL 5e

110

On the direct printing for a specific PS job^*, the number of copies set by PJL is not applied, and only 1 copy is printed. How to apply the number of copies set by PJL.

*A specific PS job means a job with a staple information set by Custom Operator of PS.

The number of copies set by PJL is prioritized.

111

How to apply a setting in a PS file, to staple by each page in a page unit.

Setting value:

Off: The setting in a PS file is not applied

On: The setting in a PS file is applied

112

In addition to the Switch 40 setting, the print position setting (Lead/Center/Rear) of Hot Folder should be allowed.

Setting value:

Off: Do not follow the print position setting.

On: Follow the print position setting.

Restrictions

• Switch 40 needs to be turned On.

• This setting is available only for PS and PDF.

• The Full Bleed printing is always selected.

116

An image should be created based on the size of the printing area when a PDF file is imported by using APPE.

Setting value:

Off: Based on the PDF original size.

On: Based on the size of the printing area (same as CPSI).

Restrictions

• This setting is available only for standard original.

120

A color space should be set by the Real Time Mode Twain driver.

The following can be set.

Off: sRGB

On: Adobe RGB

121/122

Special original settings such as Same Width should be allowed by the Real Time Mode Twain driver.

The following can be set.

121/122=Off/Off: Normal

121/122=On/Off: Same Width

121/122=Off/On: Different Width

121/122=On/On: Z-Folded

123

Thin paper should be set by the Real Time Mode Twain driver.

The following can be set.

Off: Normal

On: Thin Paper

124

The Fit to Paper Size function should be reduced only in Hot Folder.

Setting value:

Off: Reduces or enlarges the size of the image to fit the paper size.

On: Reduces the size of the image to fit the paper size without enlarging it.

Restrictions

• There are conditions to use this item. For details, contact your service representative.

125

The size to be fitted should be switched to the printing area when Fit to Paper Size is used in Hot Folder.

Setting value:

Off: Fits to the paper size.

On: Fits to the printing area.

Restrictions

• There are conditions to use this item. For details, contact your service representative.

126

Poster should support 2-sided printing.

Setting value:

Off: Does not support 2-sided printing.

On: Supports 2-sided printing.

Restrictions

• There are conditions to use this item. For details, contact your service representative.

127

Transparent objects on Microsoft Office applications should be output with high resolution. Setting to high resolution may be able to clear remarkable dots that occur depending on the transmissivity (%) for printing.

Setting value:

Off: Does not set to high resolution.

On: Sets to high resolution.

If On is selected,

this setting is necessarily spooled at the time of PostScript printing regardless of the machine settings.

Restrictions

• Only figures are enabled. No effect is obtained for image transmittivity.

130

The number of job copies and the number of pages should be printed on a banner page in the PS Plug-in driver.

Setting value:

Off: Does not print the number of job copies and the number of pages on a banner page.

On: Prints the number of job copies and the number of pages on a banner page.

Restrictions

• This setting is available only for PS, PDF, and TIFF.

• This function cannot be combined with Booklet Splitting.

131

A banner page in the PS Plug-in driver should be output after a job although it is output before a normal job in the current status.

Setting value:

Off: Prints data in the order of banner page => job.

On: Prints data in the order of job => banner page.

132

The following two conflicting functions can be set simultaneously for a PCL job.

• Specify Text Margin

• Horizontal Motion Index

The both options above can be configured simultaneously.

By default, Specify Text Margin has priority in the PCL-compliant specifications, but Horizontal Motion Index, the HP-compatible specification, should be set to be given priority.

Turn this switch On to change to the HP-compatible specifications. Turn this switch On to change to the HP-compatible specifications.

Setting value:

Off: Prioritizes Specify Text Margin. (PCL-compliant specifications)

On: Prioritizes Horizontal Motion Index. (HP-compatible specifications)

135

A notification E-mail should be sent to the E-mail destination specified in Status Notification Setting of Network Setting - NIC Settings-Detail Settings at the timings specified in Job Started and Job finished.

Setting value:

Off: Does not send a notification E-mail.

On: Sends a notification E-mail.

Restrictions

A notification E-mail can be sent only to E-mail 1.

136

When an attempt is made to import a job for which Composite Overprint of APPE is set to Enable (other than Off) and the paper type link is set to On in Print Manager, an error occurs.

Changing to On may prevent such an error from being caused.

137

The RIPed raster data should be transferred to the specified SMB server in TIFF or PDF format. For example, it should be used for digital inspection (comparison of data before and after RIP) or other purposes.

Setting value:
Off: Disable
On: Enable
If you select On, File Transmission Setting is displayed in the printer driver, Hot Folder, or Controller of the machine.
See About [File Transmission Setting] for details.
Restrictions
The transfer function is not available for HDD store jobs, secure jobs, and hold jobs (without RIP).

146

A font error is ordinarily ignored in Adobe Acrobat, but in APPE, output a font error as an error without ignoring it.

Setting value:

Off: Ignores a font error.

On: Outputs a font error without ignoring it.

147

When the number of copies is set to 1 and Group is selected by using the job editing function of Print Manager, the setting should be changed to Sort forcibly.

When the number of copies is set to 1, the setting is fixed to Group.

149

DLP (Device Link Profile) should be specified for each tab even when composite printing is specified in APPE.

Setting value:

Off: Restricts DLP specification for each tag when composite printing is specified in APPE.

On: Allows you to specify DLP for each tag even when composite printing is specified in APPE.

150

Color bar and color setting information should be printed in all pages for poster printing.

Setting value:

When banner pages are specified in poster printing, information is printed as follows.

Off: Prints color bar and color setting information only in banner pages.

On: Prints color bar and color setting information in all pages.

Restrictions

• This option is available only when PDL is set to PS or PDF.

• This option is available only for jobs from Hot Folder.

• If Re-RIP Print, Re-RIP Store, Restore, or Job Reset is select in Print Manager, configuration information is reset.

• If On is selected, the setting of Software Switch 131 is disabled.

151

The page with the Duplex command specified should be printed on the front side.

The page with the Duplex command specified is printed on the front side.

Restrictions

• This option is available only when PDL is set to PS or PDF (CPSI).

152

When Direct Print is selected, the printing positions of the configuration information and color bar are different from those specified using the PS Plug-in driver.

This phenomenon occurs when the original orientation (portrait or landscape) is changed.

• Original in portrait mode => Original Orientation is set to Landscape.

• Original in landscape mode => Original Orientation is set to Portrait.

Setting value:

Off: Sets the configuration information and color bar printing positions to the same positions as when using the PS-Plug-in driver.

On: Fits the configuration information and color bar printing positions to the original size regardless of the orientation setting.

155

The CPSI and APPE cache area should be moved to the optional HDD.

Setting value:

Off: Does not move the cache area to the external HDD.

On: Moves the cache area to the external HDD.

After the change, turn OFF/ON the sub power switch to apply the setting.

156

Printing stops at the last copy of multiple jobs (2 to 10 copies) that are sent from the VPSX server.

Extending the job end detection may allow you to resolve an error that causes printing to be stopped.

Setting value:

Off: Does not extend the job end detection.

On: Extends the job end detection.

157

The contents of Result should be output as the EOJ command response result.

Set the option as shown below so that the contents of Result can be output.

Example: Result = OK, etc,

Setting value:

Off: Does not output.

On: Output.

158

The profile that converts CMYK data to gray scale is different between CPSI and APPE, and in general use, the CPSI profile is used. When the image quantity of the high-density photo data created in CMYK may be enhanced if the APPE profile is used; therefore, a profile equivalent to for APPE should be available.

Setting value:

Off: Uses the CPSI conversion profile.

On: Uses the conversion profile equivalent to for APPE.

Restrictions

• This function is available only when "CIE Color" is set to On.

• This setting is available only for PS(CPSI), PDF(CPSI), and PPML.

159

The APPE profile that converts CMYK data to gray scale ordinarily reproduces the gradation of the CMYK high-density area; therefore, the black density 100% area of original data cannot be output with black density 100%. Such an area should be output forcibly with black density 100%.

Set the option so that an image object can be held with black density 100%.

Setting value:

Off: Does not hold black density 100% in gray-scale output mode.

On: Holds black density 100% in gray-scale output mode.

Restrictions

• An image object is forcibly output, so the gradation of the high-density part may be damaged. This function is available only for the scanned text data.

• When this function is set to On, the Pure Black setting is not reflected.

• This setting is available only for PS(CPSI), PDF(CPSI), PDF(APPE), TIFF(Emperor), and PPML. Also, CPSI is available only when switch 158 is set to On.

160

The maximum number of CMYK-CMYK direct link profiles able to be registered should be increased to 100 or more.

Setting value:

Off: Allows you to register up to 50 CMYK-CMYK device link profiles.
When 51 or more CMYK-CMYK device link profiles are included in the database at startup, the system stores only the 50 items of which the registration date is later. The remaining 50 items are deleted (however, this setting is configured so that the profiles specified by color default cannot be deleted).

On: Allows you to register up to 100 CMYK-CMYK device link profiles.

161

When the number of CMYK-CMYK direct link profiles to be registered exceeds the maximum, a new profile should be registered by automatically deleting the oldest profile.

Setting value:

Off: Disables a new profile from being registered when the maximum number of CMYK-DLP profiles have already been registered.

On: Deletes the table of the oldest creation data and time from the list and registers a new CMYK-DLP profile when the maximum number of CMYK-DLP profiles have already been registered.
