Changing Information

  1. Click Execute on the Color Configuration Management screen.

    Color Centro Profiler screen appears.

  2. From the tree view and the list of Management of the Existing Profile sets, select the Profile Set to change the information.

    • supplementary explanationWhen you reload the information of the image controller connected currently, select View menu - Reload. Executing of reload discards the adjusted Profile Set when the Profile Set has not been registered yet in the image controller. Register the settings before executing of reload, as required. For details about the registration, refer to Editing and Registering a Color Configuration.

  3. Click Change Info..

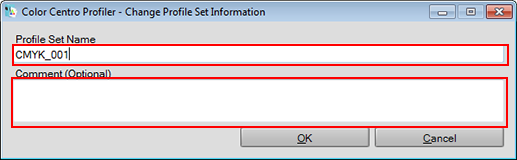

    Change Profile Set Information appears.

    • supplementary explanationWhen you select the multiple Profile Sets, Change Info is not available.

    • supplementary explanationSimilar operation can be done when you select File menu - Change Info.

    • supplementary explanationYou cannot change information of profile sets that are pre-registered in this machine.

  4. If necessary, change Profile Set Name and Comment (Optional).
    Up to 96 one-byte characters can be entered to Profile Set Name. Up to 128 one-byte characters (64 two-byte characters) can be entered to Comment (Optional).

    • supplementary explanationYou cannot change to the same name of the existed Profile Set in the image controller.

  5. Click OK.

    The Profile Set information is changed.

    • supplementary explanationWhen there is the Profile Set with the same name, Copy Profile Set screen appears. In this case, specify another Profile Set name and click Save.

  6. On Color Centro Profiler screen, from the File menu, select Exit.

    Color Configuration Management screen returns.
