Confirming Conditions

The list displays dates and time by paper type and screen type.

  • Calibration

  • Exact Color or G7 Calibration

  1. On the Calibration Manager screen, click Check the Status.

    The Confirm all registrations screen is displayed.

  2. Select a screen from Screen Settings in order to display the information for the screen.

  3. Click Close.

    The Calibration Manager screen returns.

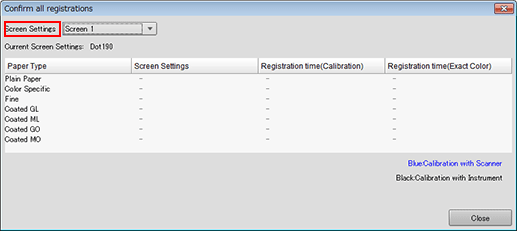

The items displayed on the Confirm all registrations screen are as follows.

Name

Description

Current Screen Settings

Displays the real screen name that is associated with the screen type that is selected in Screen Settings.

Paper Type

Displays paper types for the screen that is selected in Screen Settings.

Alphabets in paper types stand for the following:
G: glossy
M: matte
L: laser (for laser print)
O: offset (for offset print)

Screen Settings

Screen name that is used by the engine at the time of registering the calibration data.
If you select Custom or nothing in Screen Settings, this column displays -.

Registration time (Calibration)

Date/Time when the calibration data was registered. This indicates date and time in blue for scan calibration and in black for calibration by using a colorimeter. If no data is registered, - is displayed.

Registration time (Exact Color)

Registration time(G7 Calibration)

Displays the date and time when data of advanced calibration has been registered. If no data is registered, - is displayed.
