CMYK TP: Duplicating a Profile

You can make a duplication of the CMYK target profile in the image controller, to the image controller.

1. Click CMYK Target Profile on Profile Management screen.

   • supplementary explanationSimilar operation can be done by selecting, on the File menu, Profile Type - CMYK Target Profile.

2. From the tree view, select Controller.

   The list appears according to the selection.

   • supplementary explanationFor details about how to connect another image controller, refer to Switch the Image Controller to Connect.

3. From the list, select the CMYK Target Profile to copy.

   • supplementary explanationWhen you reload the information of the image controller connected currently, select File menu - Reload.

4. Click Copy.

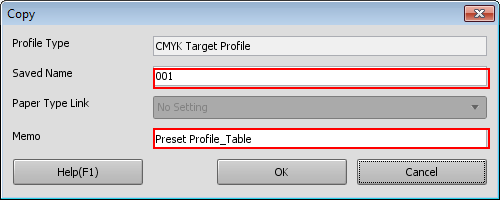

   Displays the Copy screen.

   • supplementary explanationWhen you select the multiple CMYK Target Profile, Copy is not available.

   • supplementary explanationWhen a folder other than Controller is selected on the tree view, Copy is not available.

   • supplementary explanationYou can also click the File menu - Copy.

5. Enter Saved Name and Memo.
   Up to 31 one-byte characters can be entered to Saved Name. Up to 64 one-byte characters (32 two-byte characters) can be entered to Memo.

   • supplementary explanationYou cannot save the CMYK Target Profile of the same name with those in the image controller.

6. Click OK.

   The duplication of the CMYK Target Profile is generated in the image controller.
