CMYK-CMYK DLP: Importing a Profile

You can register a CMYK-CMYK device link profile of Local, My Documents, or Network in Controller. You can also use a device link profile created via application other than Color Centro.

  1. Click CMYK-CMYK Device Link Profile on Profile Management screen.

    • supplementary explanationSimilar operation can be done by selecting, on the File menu, Profile Type - CMYK-CMYK Device Link Profile.

  2. Select the places from Local, My Documents or Network of the tree format, where the CMYK-CMYK Device Link Profile are saved.

    The list appears according to the selection.

  3. Select a CMYK-CMYK Device Link Profile from the list.

  4. Click Import.

    The Import screen is displayed.

    • supplementary explanationWhen you select the multiple CMYK-CMYK Device Link Profile, Import is not available.

    • supplementary explanationWhen a folder other than Controller is selected on the tree view, Import is not available.

    • supplementary explanationSimilar operation can be done when you select File menu - Import.

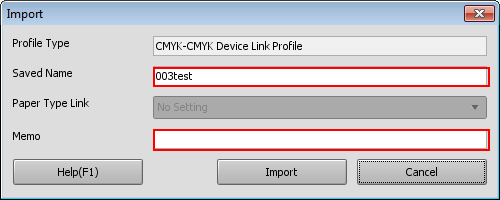

  5. Enter Saved Name and Memo.
    Up to 31 one-byte characters can be entered to Saved Name. Up to 64 one-byte characters (32 two-byte characters) can be entered to Memo.

    • supplementary explanationYou cannot save the CMYK-CMYK Device Link Profile of the same name with those in the image controller.

  6. Click Import.

    The CMYK-CMYK Device Link Profile is registered in the image controller.

    Import screen is closed to return to Profile Management screen.
