RGB-CMYK DLP: Change the Information

You can change the information of the saved RGB-CMYK device link profile.

1. Click RGB-CMYK Device Link Profile on Profile Management screen.

   • supplementary explanationYou can also click the File menu - Profile Type - RGB-CMYK Device Link Profile.

2. From the tree view and the list, select the RGB-CMYK Device Link Profile to change the information.

   • supplementary explanationFor details about how to connect another image controller, refer to Switch the Image Controller to Connect.

   • supplementary explanationWhen you reload the information of the image controller connected currently, select File menu - Reload.

3. Click Change Table Information.

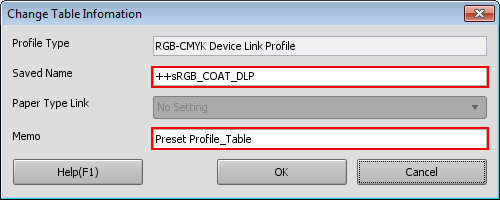

   The Change Table Information screen is displayed.

   • supplementary explanationWhen you select the multiple RGB-CMYK Device Link Profile, Change Table Information is not available.

   • supplementary explanationSimilar operation can be done when you select File menu - Change Table Information.

   • supplementary explanationIf the profile name is marked with an asterisk (*), you cannot change the profile's information.

4. If necessary, enter Saved Name and Memo.
   Up to 31 one-byte characters can be entered to Saved Name. Up to 64 one-byte characters (32 two-byte characters) can be entered to Memo.

   • supplementary explanationBut, you cannot change the table name of the RGB-CMYK Device Link Profile which was registered at factory shipping.

5. Click OK.

   The RGB-CMYK Device Link Profile information is changed.
