RGB-CMYK DLP: Duplicating a Profile

You can make a duplication of the RGB-CMYK device link profile in the image controller, to the image controller.

1. Click RGB-CMYK Device Link Profile on Profile Management screen.

   • supplementary explanationYou can also click the File menu - Profile Type - RGB-CMYK Device Link Profile.

2. From the tree view, select Controller.

   The list appears according to the selection.

   • supplementary explanationFor details about how to connect another image controller, refer to Switch the Image Controller to Connect.

3. From the list, select the RGB-CMYK Device Link Profile to copy.

   • supplementary explanationWhen you reload the information of the image controller connected currently, select File menu - Reload.

4. Click Copy.

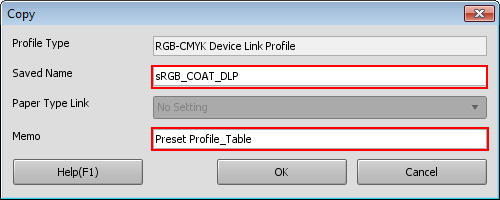

   Displays the Copy screen.

   • supplementary explanationWhen you select the multiple RGB-CMYK Device Link Profile, Copy is not available.

   • supplementary explanationWhen a folder other than Controller is selected on the tree view, Copy is not available.

   • supplementary explanationYou can also click the File menu - Copy.

5. Enter Saved Name and Memo.
   Up to 31 one-byte characters can be entered to Saved Name. Up to 64 one-byte characters (32 two-byte characters) can be entered to Memo.

   • supplementary explanationYou cannot save the RGB-CMYK Device Link Profile of the same name with those in the image controller.

6. Click OK.

   The duplication of the RGB-CMYK Device Link Profile is generated in the image controller.
