RGB SP: Importing a Profile

You can register an RGB source profile in Local, My Documents, or Network to the image controller.

  1. Click RGB Source Profile on Profile Management screen.

    • supplementary explanationSimilar operation can be done by selecting, on the File menu, Profile Type - RGB Source Profile.

  2. Select the places from Local, My Documents or Network of the tree format, where the RGB Source Profile are saved.

    The list appears according to the selection.

  3. Select an RGB Source Profile from the list.

  4. Click Import.

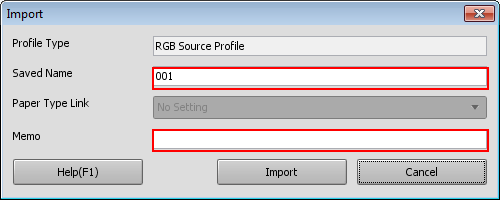

    The Import screen is displayed.

    • supplementary explanationWhen you select the multiple RGB Source Profile, Import is not available.

    • supplementary explanationWhen a folder other than Controller is selected on the tree view, Import is not available.

    • supplementary explanationSimilar operation can be done when you select File menu - Import.

  5. Enter Saved Name and Memo.
    Up to 31 one-byte characters can be entered to Saved Name. Up to 64 one-byte characters (32 two-byte characters) can be entered to Memo.

    • supplementary explanationYou cannot save the RGB Source Profile of the same name with those in the image controller.

  6. Click Import.

    The RGB Source Profile is registered in the image controller.

    Import screen is closed to return to Profile Management screen.
