Mounting the feeding extension tray (Multi Bypass Tray MB-508)

Mount Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) in Multi Bypass Tray MB-508.

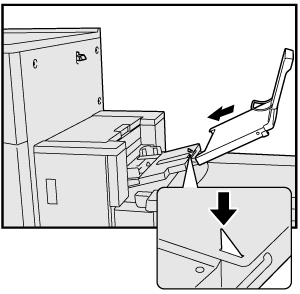

  1. Push down the paper size sensor of Multi Bypass Tray MB-508 and put Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) on the bypass tray from top right to cover it.

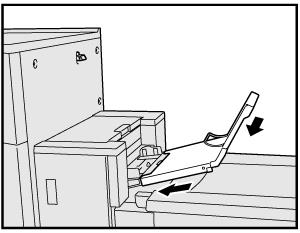

  2. Press the covered Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) into the machine.

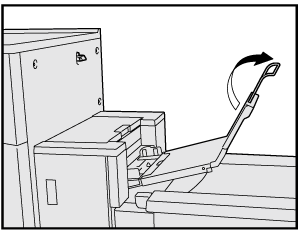

  3. Extend the extension guide.

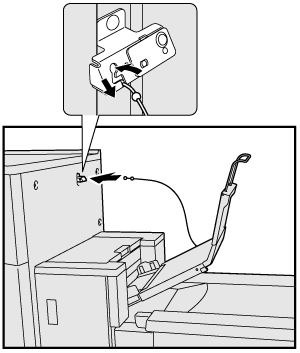

  4. Hook the top (ball end) of the wire rope to the fitting on Paper Feed Unit PF-707m.
