Sorting Copies to Primary (Main) Tray

A machine mounted with Finisher FS-612 is initially set to output sorted sets to the primary (main) tray, regardless of whether or not to be equipped with other options.

Select an output mode by following the procedure below.

Reference

  1. Position the original.

  2. Press the COPY tab to display the COPY screen.

  3. Press Output Setting.

    The Output Setting screen is displayed.

    • supplementary explanationOutput tray positions are indicated as square marks on the front image of the machine on the Output Setting screen, and the tray currently selected is highlighted. If the primary (main) tray is not selected as an output tray, select a primary (main) tray position button .

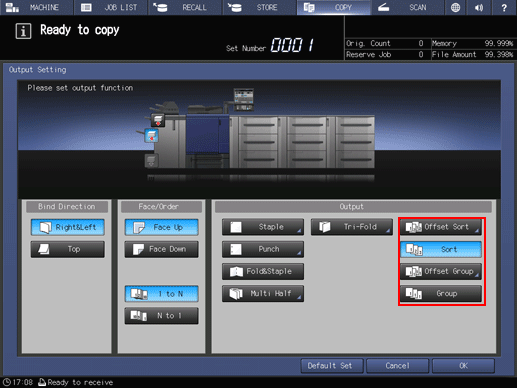

  4. Select the desired output mode.

    • supplementary explanationSelect one of Offset Sort, Sort, Offset Group, and Group keys.

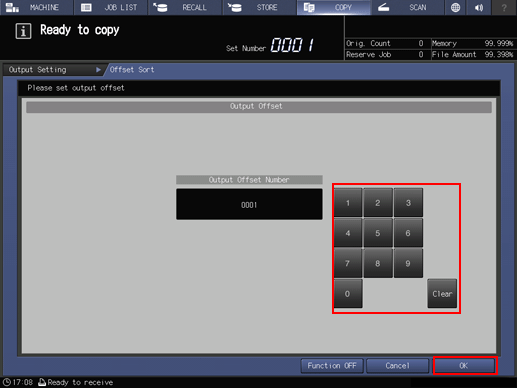

    • supplementary explanationSelecting Offset Sort or Offset Group displays the Output Offset screen. Use the touch panel keypad to enter the desired number of sets to be offset. Available range is from 1 to 9,999. When finished with the entry, press OK.

    • supplementary explanationSelect either Face Up or Face Down, and either 1 to N or N to 1, as needed.

  5. Press OK on the Output Setting screen.

    An icon representing specified output mode is displayed under Output Setting on the COPY screen.

    NOTICE

    • The primary (main) tray gradually goes down while printed materials are output. DO NOT allow any object to interfere with the operation of the primary (main) tray on the left side of the finisher, as any interference may cause damage to the finisher.

    NOTICE

    • The primary (main) tray has a limit in capacity. Be careful not to exceed the limit, otherwise unexpected trouble may be caused
