Interrupt: Interrupting Copy Job

Use the Interrupt mode to interrupt copying in progress to copy with different settings temporarily.

Pressing Interrupt on the control panel stops the machine operation temporarily at the timing available for interrupt copying and allows you to copy with different settings.

When interrupt copying is completed, the settings for the previous job is restored automatically.

Even if Interrupt is pressed, the Interrupt mode is not available in the following conditions.

Machine is outputting all data in memory or scanning the original.
The Service Call message displays or a paper misfeed occurs.
Already using Interrupt mode.
The machine mounted with Image Controller IC-605 is operating Prior Print, or a Prior Print job is on the list of reserved jobs.
The job list includes one or more jobs (job running or job reserved) which Auto Image Adjustment is set to ON.

preconditionReserve job cannot be operated in Interrupt mode.
preconditionAuto Low Power or Auto Shut OFF does not function during Interrupt mode.
preconditionInterruption Suspend Setting can be set in Utility Menu. For details, refer to [User Setting]: [Copy Setting].

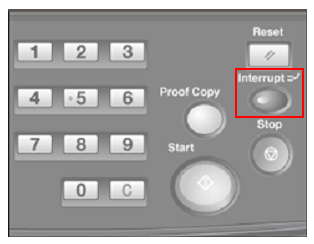

Press Interrupt on the control panel.

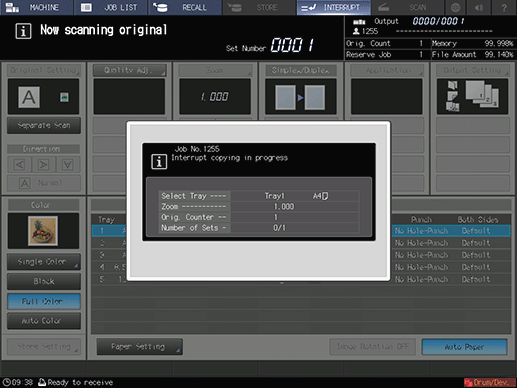

The Interrupt LED flashes until the machine is ready for Interrupt mode. When the machine is ready for Interrupt mode, the message Ready to copy is displayed in the message area and the Interrupt LED turns steady, then the COPY tab is changed to the INTERRUPT tab.

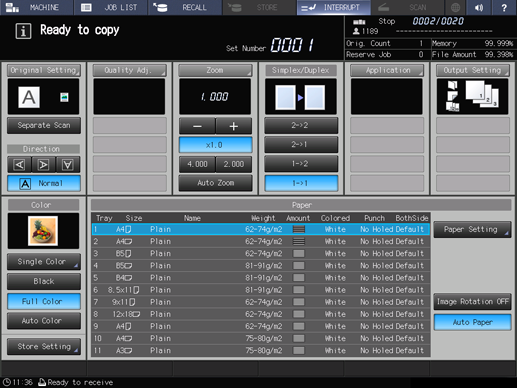

The COPY screen for interrupt copying is displayed.
Make copy selections, as desired.
All copy conditions except Reserve mode can be specified.
- supplementary explanationWhen Interruption Suspend Setting is set to Stop Immediately, Application is unavailable.
- supplementary explanationWhen Interruption Suspend Setting is set to Stop Immediately, you cannot recall the settings registered in the Copy Mode Memory.
Position the original on the original glass or ADF, then press Start on the control panel to start the interrupt copying.

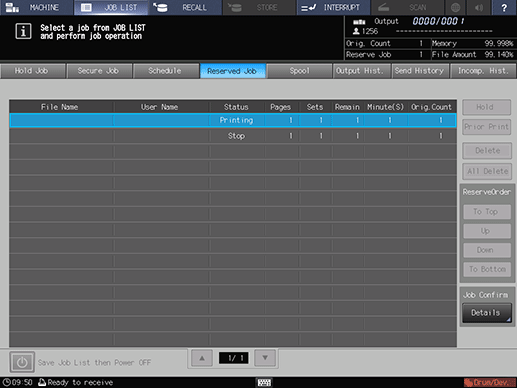

- supplementary explanationDuring interrupt copying, the interrupt job is displayed at the top of the Reserved Job list in the JOB LIST screen.
When Interrupt copying is completed, press Interrupt again.
The Interrupt LED is turned off and Interrupt mode is canceled. The machine restores the settings to the settings before interrupting to restart the operation that is performed before interrupting.
- supplementary explanationInterrupt mode is not canceled automatically after interrupt copying is finished. However, the mode is canceled when Auto Reset functions.
