Adhesive Binding: Making Copies in the Order of Adhesive Binding
When performing 2-sided copying for an original of multiple sheets, the longer side of paper is divided into two parts to print an original image. The copied sheets are arranged in the page order (adhesive binding) of the original when each sheet is folded in half and stacked.
Select either Left Bind or Right Bind according to the desired booklet type.
Setting options | Original | Output |
|---|---|---|
Left Bind |  |  |
Right Bind | |  |
preconditionUse ADF. If the number of original pages count exceeds the maximum stack capacity of the ADF, select Separate Scan. If the Separate Scan mode is used together, the original glass is also available.
preconditionOriginal pages should be a multiple of 4 in 1->2 mode or a multiple of 2 in 2->2 mode. Otherwise, blank pages are automatically inserted to the last.
preconditionAuto Zoom is automatically selected.
Position the original.
Load the desired copy paper size in a tray.
Press Application on the COPY screen.

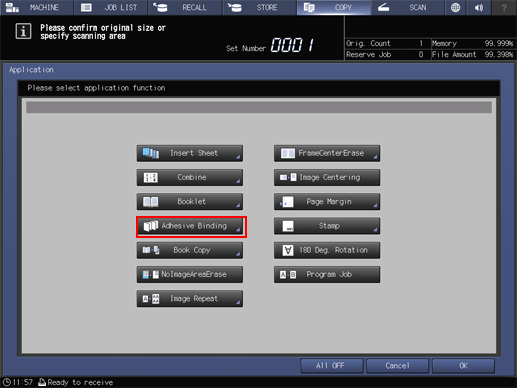

Press Adhesive Binding on the Application screen.

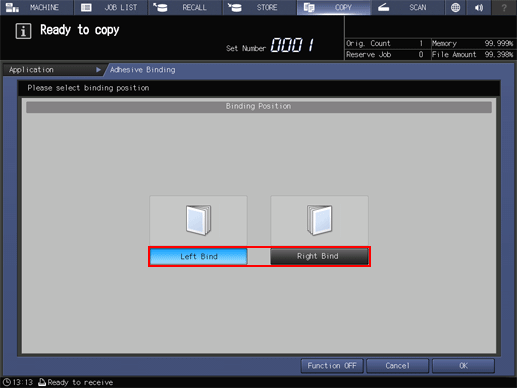

Press the desired binding position key.
supplementary explanationPress Left Bind or Right Bind if you want to change the output order.
Press OK to complete the setting.
supplementary explanationTo resume the previous settings, press Cancel.
supplementary explanationTo cancel the Adhesive Binding function with the current setting saved, press Function OFF.
Press OK on the Application screen to return to the COPY screen.
The Adhesive Binding icon and shortcut key are displayed under Application on the COPY screen.
Select Simplex/Duplex.
supplementary explanationSelect 1->2 or 2->2 according to the original type placed in the ADF in step 1.
Select additional copy conditions, as desired.
Enter the desired print quantity from the keypad on the control panel.
Press Start on the control panel.
supplementary explanationPrinting does not start without returning to the COPY screen. Be sure to display the COPY screen.
