Changing the magnification ratio

The following 3 modes are provided to change the zoom.

  • Vert./Horiz. Zoom (proportional): Specified within the range from 0.250 to 4.000 in 0.001 (0.1%) increments.

  • Enlarge/Reduce (fixed): Select one from the eight ratios which are used frequently at a single touch.

  • Set Zoom Ratio: Select one from the three ratios previously programed at a single touch.

Reference

  • The settings of Enlarge/Reduce (fixed) and Set Zoom Ratio are provided on the UTILITY screen. For details, refer to [Set Zoom Ratio Setting].

  1. Press the COPY tab to display the COPY screen.

  2. Press Zoom.

    The Zoom screen is displayed.

  3. Specify the desired magnification ratio.

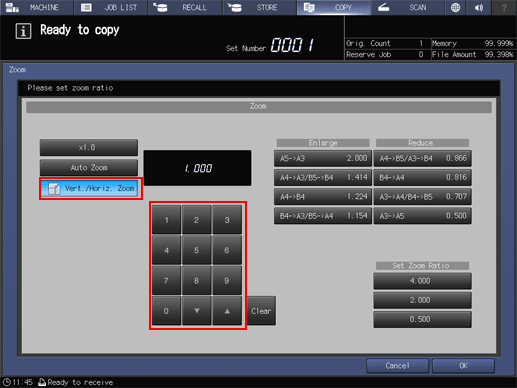

    Vert./Horiz. Zoom (proportional):

    Press Vert./Horiz. Zoom to highlight it. Then, use the touch panel keypad or down / up to enter the desired magnification ratio. The entered ratio is displayed on the screen.

    • supplementary explanationIf wrong number is entered, continue by entering the correct number from the beginning.

    • supplementary explanationKeep pressing down or up to change the ratio in 0.001 (0.1%) steps at first, and then in 0.010 (1%) steps.

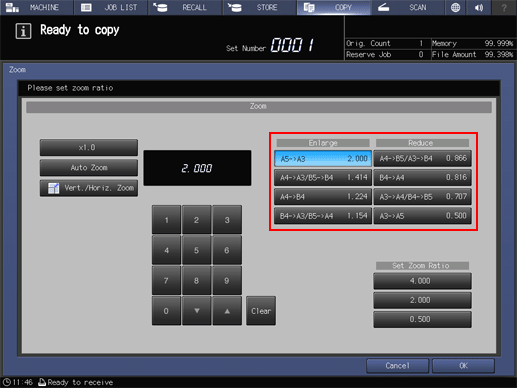

    Enlarge/Reduce:

    Select the desired zoom key from under Enlarge or Reduce.

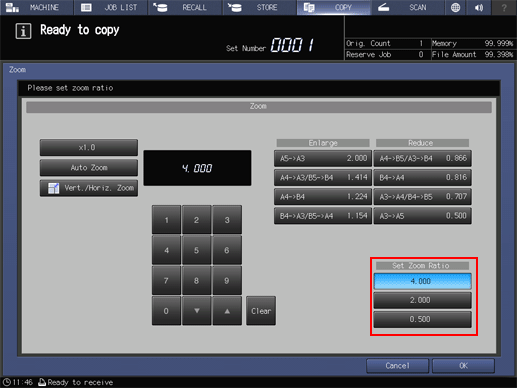

    Set Zoom Ratio:

    Select the desired zoom key from under Set Zoom Ratio.

  4. Press OK. The screen returns to the COPY screen.

    • supplementary explanationTo resume the previous setting, press Cancel.
