RECALL | [New Folder Creation]

[New Folder Creation]

Create a new folder to store jobs on the HDD.

The password setting is optional.

Tips

This item is displayed on a product equipped with a scanner and HDD. For details, refer to What Is [RECALL]?.

Tips

[Root Directory] provides one Public folder by default.

[Root Directory] can contain up to 1,000 folders.
Up to 100 jobs can be stored, and up to 1,000 boxes can be created in each folder.

Category		Print Workflow
Location	Machine	Touch Panel
	Printer driver	-
	Application	-
Required options		-
Required items		-
Setting items		[Folder Name]	Enter [Folder Name]. This item can be specified using up to 64 single-byte characters (32 double-byte characters). For details about how to enter [Folder Name], refer to [Folder Name].
		[Password]	Set [Password]. Only the users who are sharing the password can access jobs, so this function is useful to prevent information leakage. This item can be specified using up to 64 single-byte characters (alphanumeric characters, symbols, and spaces). [Password] can be set as necessary. For details about how to enter [Password], refer to [Password].
		[Cancel]	Moves to the previous screen without saving the settings.
		[OK]	Saves the settings and moves to the previous screen.
Remarks		-
Reference		-
Screen access		Touch panel - [RECALL] - [New]

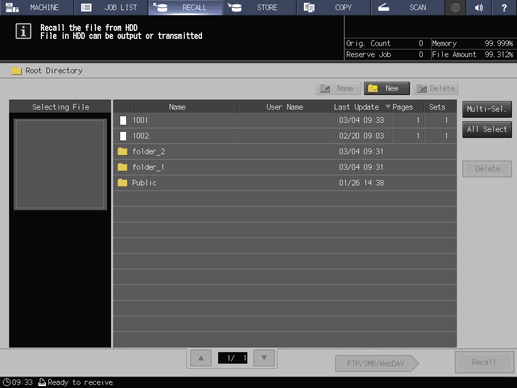

Press [New].

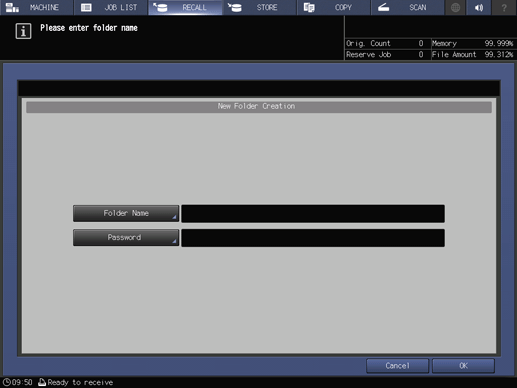

Press [Folder Name] and [Password], and enter the name and password respectively.

A password can be set as necessary.

Press [OK].
