Punch Vertical Position Adj.

Adjust the vertical position of the punch hole of Folding Unit FD-503. Adjust the pitch of the paper edge.

Objects of Adjustment:
2-Hole: Offset for All Size, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, A4 long edge feed, A5 short edge feed, B5 long edge feed, A5 long edge feed, 12  18 short edge feed, 11  17 short edge feed, 8.5  14 short edge feed, 8.5  11 short edge feed, 8.5  11 long edge feed, 8  13 short edge feed, 8K short edge feed, 16K short edge feed, 16K long edge feed, 9  11 long edge feed

3 holes/4 holes: Offset for All Size, A3 short edge feed, B4 short edge feed, A4 long edge feed, B5 long edge feed, 12 18 short edge feed, 11 17 short edge feed, 8.5 11 long edge feed, 8K short edge feed, 16K long edge feed, 9 11 long edge feed

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

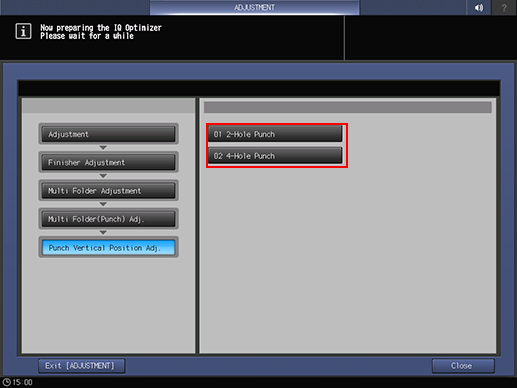

  2. Press Finisher Adjustment, Multi Folder Adjustment, Multi Folder(Punch) Adj., and Punch Vertical Position Adj. in sequence.

  3. Select 2-Hole Punch, 3-Hole Punch, or 4-Hole Punch.

  4. Select the size to be adjusted using down or up.

  5. Press Print Mode.

  6. Load the paper with the size to be adjusted, then select that tray.

  7. Press Start on the control panel.

    A sample pattern will be output.

  8. Measure the distance (a) from the edge of the printed paper to the center of punch holes.

    Number of punch holes

    Allowance

    2 holes / 4 holes

    10.5 mm ± 4.0 mm or more

    3-Hole

    9.5 mm ± 4.0 mm or more

  9. If any adjustment is required, press Exit PrintMode to return to the Punch Vertical Position Adjustment screen.

  10. Use the touch panel keypad to enter the set value.

    Adj. Range: -40~+40 1 step = 0.1 mm

    [-] To move to the center [+] To move to the edge

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    2-Hole

    3-Hole

    4-Hole

  11. Repeat steps 5 to 10 until the desired result is obtained.

  12. Press Return.

    This returns to the Punch Vertical Position Adjustment screen.
