Paper Width Adjustment

Adjust the misalignment of the punch hole position of Folding Unit FD-503 when it is significant.

Objects of Adjustment: Offset for All Size, A3 short edge feed, B4 short edge feed, SRA4 short edge feed, A4 short edge feed, B5 short edge feed, A4 long edge feed, A5 short edge feed, B5 long edge feed, A5 long edge feed, 12  18 short edge feed, 11  17 short edge feed, 8.5  14 short edge feed, 8.5  11 short edge feed, 8.5  11 long edge feed, 8 13 short edge feed, 8K short edge feed, 16K long edge feed, 16K short edge feed, 9 11 long edge feed

NOTICE

  • If a numeric value is specified for Offset for All Size, it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for Offset for All Size.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

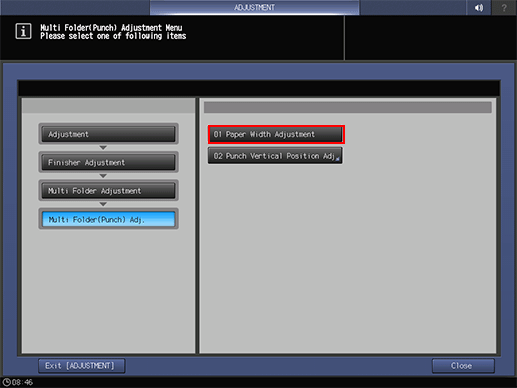

  2. Press Finisher Adjustment, Multi Folder Adjustment, Multi Folder(Punch) Adj., and Paper Width Adjustment in sequence.

  3. Select the size to be adjusted using down or up.

  4. Press Print Mode.

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Set the print quantity to 10 sets, and press Start on the control panel.

    A sample pattern will be output.

  7. Check the diameter of holes penetrating through piled output sets.

    Number of punch holes

    Allowance

    2 holes / 4 holes

    5.0 mm or more in diameter

    3-Hole

    6.5 mm or more in diameter

  8. If any adjustment is required, press Exit PrintMode to return to the Paper Width Adjustment screen.

  9. Use the touch panel keypad to enter the set value.

    Adj. Range: -20~+20 1 step = 0.1 mm

    [-] To reduce the randomness [+] To reduce the tilts

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

    • supplementary explanationAs the setting value is too large, the center of a punch hole may be displaced. As it is too small, punch hole positions may be misaligned.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Multi Folder(Punch) Adjustment Menu screen.
