Restart Timing Adjustment

Adjust the image position of lead edge in paper feed direction in the printer engine.

Objects of Adjustment: Restart Timing (Tray1), Restart Timing (Tray2), Restart Timing (Bypass Tray), Restart Timing (Tray3) to Restart Timing (Tray11), Restart Timing (Back), Tray Large Plain Offset, Tray Large Thick Offset, Tray Small Plain Offset, Tray Small Thick Offset, Bypass Large Plain Offset, Bypass Large Thick Offset, Bypass Small Plain Offset, Bypass Small Thick Offset, Large Plain Offset (ADU), Large Thick Offset (ADU), Small Plain Offset (ADU), Small Thick Offset (ADU)

NOTICE

  • Make this adjustment after completing FD-Mag. Adjustment.

  1. Press Adjustment on the MACHINE screen to display the Adjustment Menu screen.

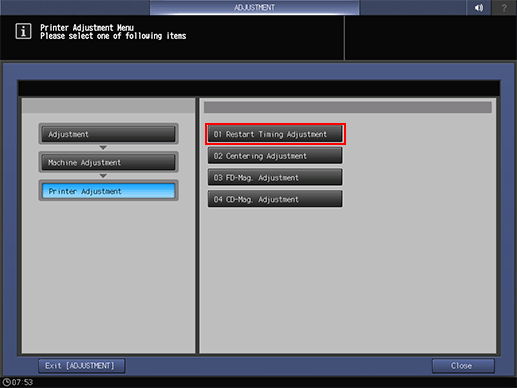

  2. Press Machine Adjustment, Printer Adjustment, and Restart Timing Adjustment in sequence.

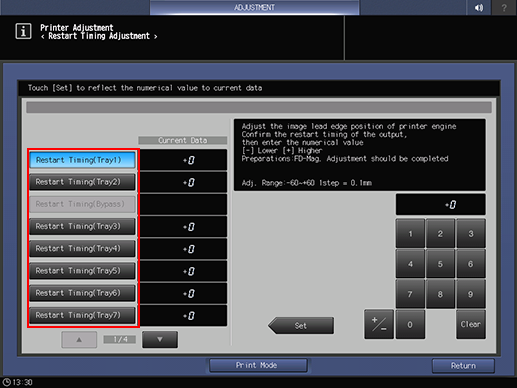

  3. Press the key of the object to be adjusted.

  4. Press Print Mode.

  5. Load A3 short edge feed paper or 11 17 short edge feed paper into the tray to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

    • supplementary explanationOn the front side of the chart, mark will be printed so that you can tell which tray is used to print the chart. For details, refer to Chart.

  7. Measure the resultant restart timing.

    Allowance: 20 mm ± 0.5 mm

  8. If any adjustment is required, press Exit PrintMode to return to the Restart Timing Adjustment screen.

  9. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    Adj. Range: -60~+60 1 step = 0.1 mm

    [-] Wide [+] Narrow

    • supplementary explanationUse +/- to specify the value to be positive or negative.

    • supplementary explanationPress Set to change the Current Value.

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press Return.

    The screen returns to the Printer Adjustment Menu screen.
